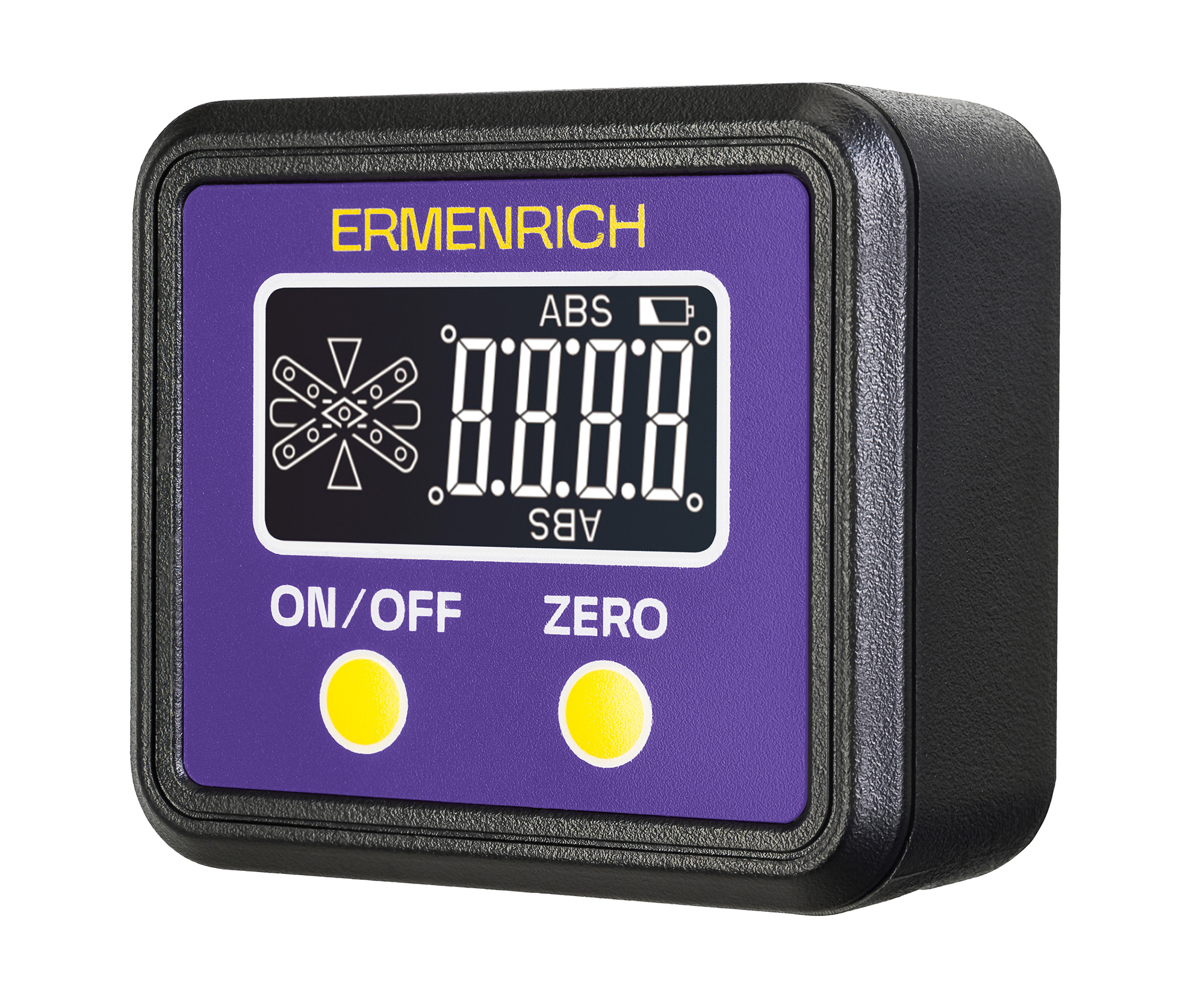

Ermenrich Verk LQ20 Digital Level

Magnetic base. For measuring angles of slope. Units of measurement: degrees

Digital

Level type by application and design

±0.1° at 0° and 90°, the rest – ±0.2°

Accuracy: the errors in measuring long distances are extremely critical

0.01°

Resolution is the smallest change in value that can be detected and displayed by the device

Availability

Product ID	81736
Brand	Ermenrich
Warranty	5
EAN	5905555003153
Package size (LxWxH)	5x9x8
Shipping Weight	0.11

Description

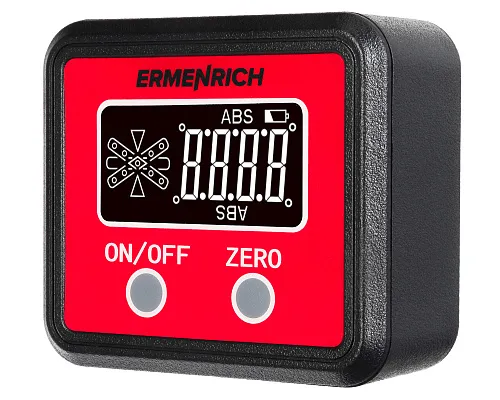

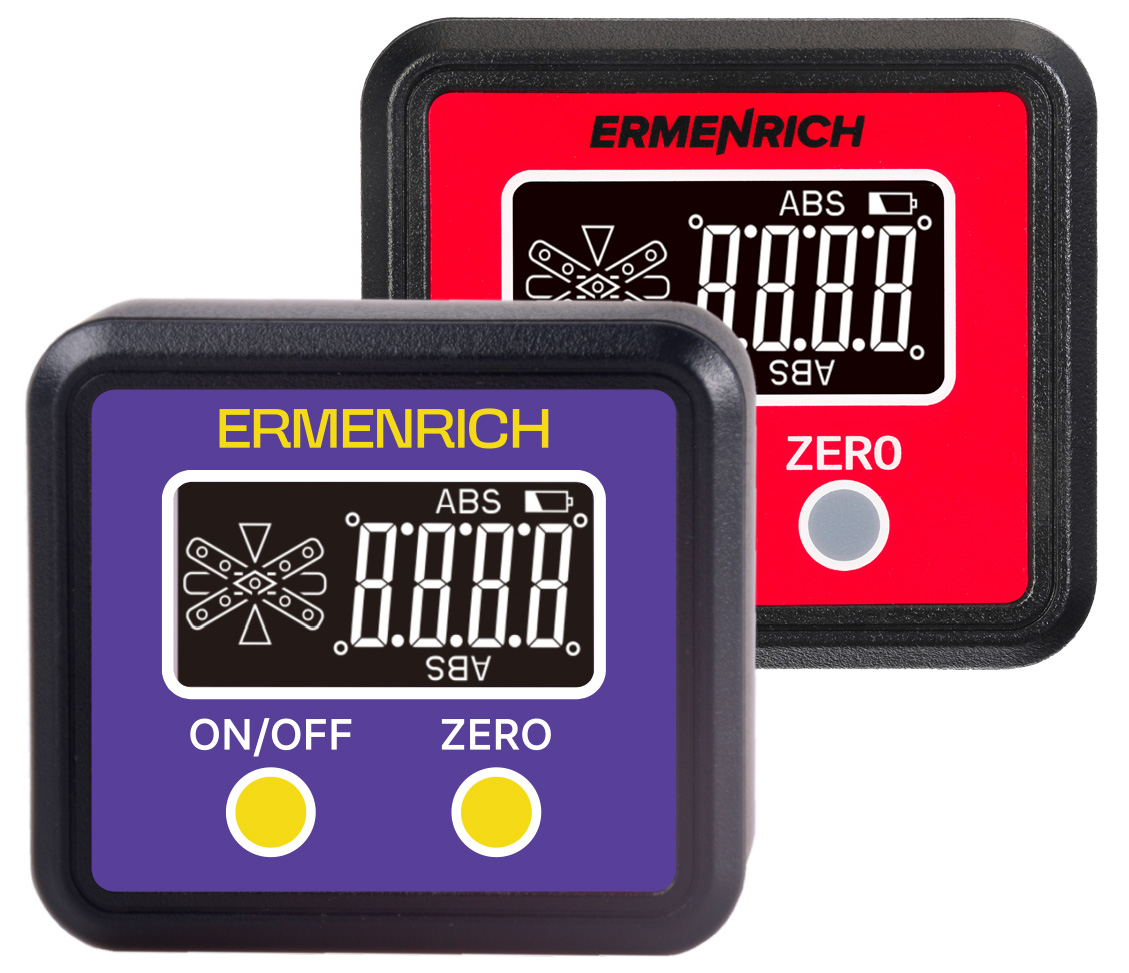

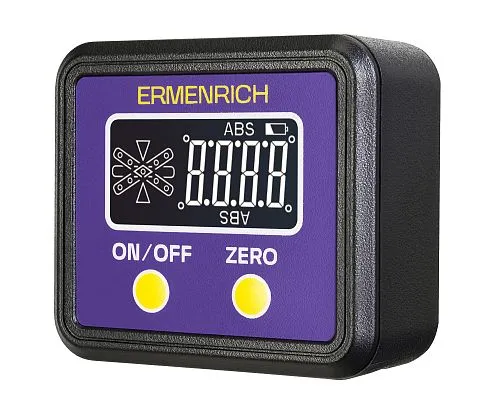

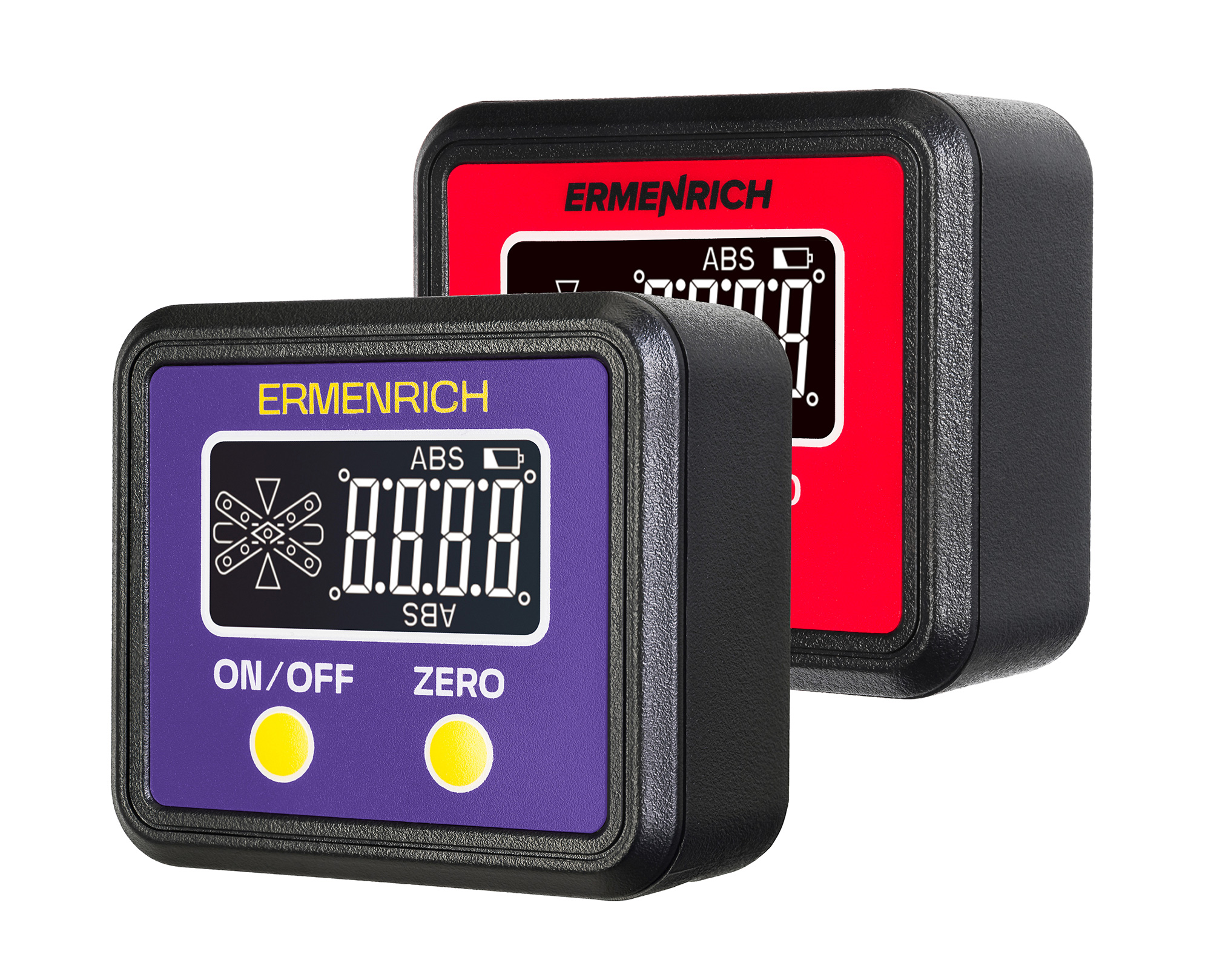

Digital level Ermenrich Verk LQ20 – a universal device designed for leveling work during construction, repair and finishing, installation, and manufacturing. The level can measure slope in degrees in four directions. High accuracy is one of the main advantages of the device – the sensitivity is 0.1/0.2 degrees (depending on the angle sharpness). The accurate measurements are displayed on the built-in LCD screen.

The Ermenrich Verk LQ20 Digital Level is designed to operate over a wide temperature range and is splashproof. The device is made of a polycarbonate alloy and high-strength ABS plastic, which makes it shockproof and drop-proof. The magnetic V-groove base will help to place the level on any surface, including metal. The calibration can be performed manually. There is a zero set function. It is powered by a pair of batteries and has the auto-off function that helps save battery power.

Key features:

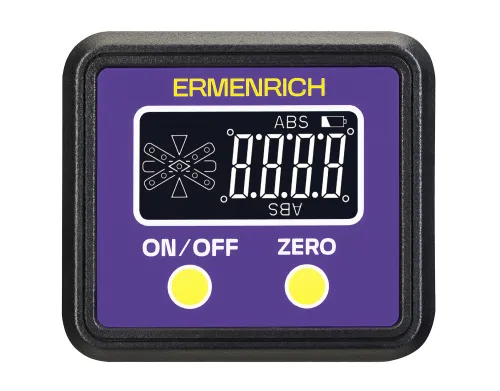

Digital level and angle meter with an LCD screen and simple controls
Magnetic V-Groove base, a zero set function
Durable composite body material (polycarbonate and ABS plastic)
Powered by batteries, an auto-off function, and a low battery status indicator

Specifications

Product ID	81736
Brand	Ermenrich
Warranty	5
EAN	5905555003153
Package size (LxWxH)	5x9x8
Shipping Weight	0.11
Level type	digital
Accuracy	±0.1° at 0° and 90°, the rest – ±0.2°
Units of measurement	degrees
Measuring range, m	0 — 360
LCD screen	yes
Maximum resolution	0.01°
Calibration	manual
Zero set function	✓
Magnetic base	✓
V-Groove	✓

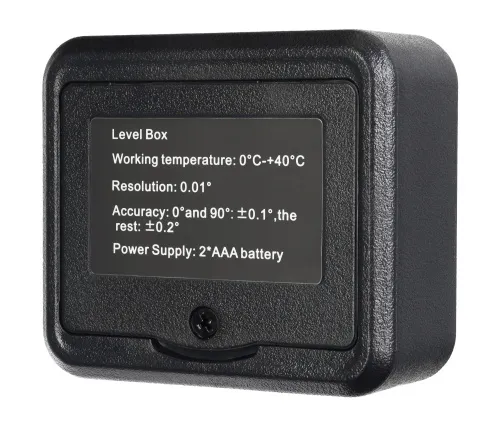

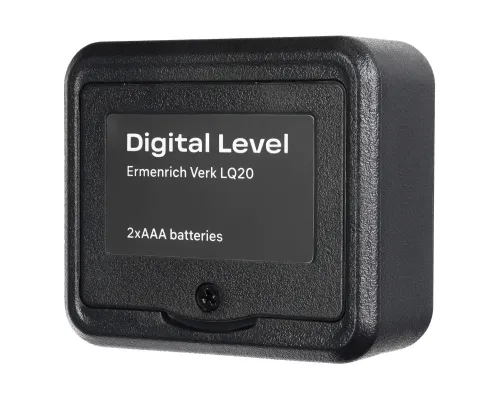

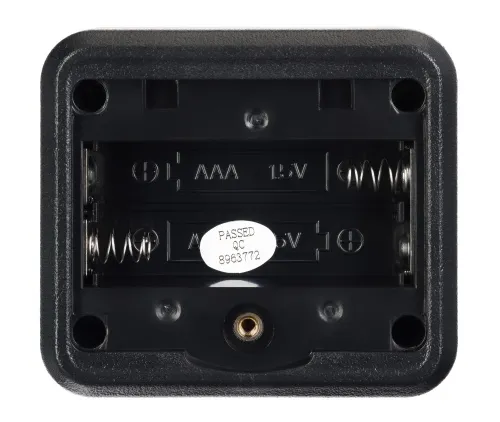

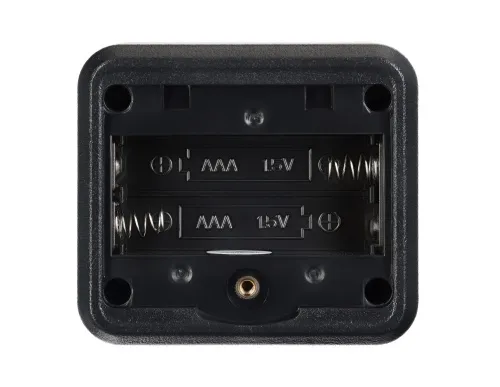

Power supply	2 AAA batteries, 1.5V (not included)
Visual fault locator (VFL)	✓
Auto power off	5 min
IP water and dustproof rating	IP42, protected against vertically falling water drops (when tilted up to 15°)
Body	polycarbonate, high-strength ABS plastic
Operating temperature range,°C	0...+40
