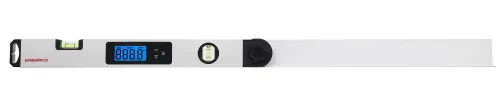

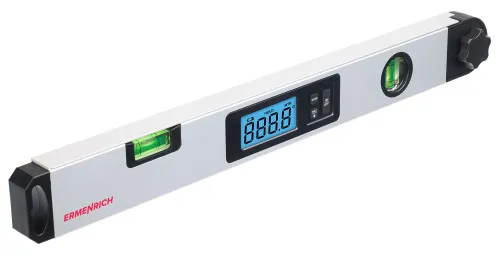

Ermenrich Verk DA40 Digital Angle Finder
Slope angle measurement. Miter angle calculation
Product ID | 81744 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555003160 |
Package size (LxWxH) | 4x47x7 cm |
Shipping Weight | 0.51 kg |
The Ermenrich Verk DA40 Digital Angle Finder is a practical tool that can serve for a variety of construction and repair tasks. It comes in handy whenever you need to measure angles between surfaces accurately. In addition, there is a miter mode for making the right cut, which can be activated by pressing a button. In this mode, the measured angle is converted into the miter angle, which will later on be used for working with the miter saws. Therefore, the angle finder is an essential tool for cutting long pieces of wood and composite materials.
The working range of the device is 0–230°, and the measurements are displayed on the built-in LCD screen. Ermenrich Verk DA40, complete with two bubble levels, is made of aluminum and high-strength ABS-plastic. The device is shockproof and will last a long time. The calibration is automatic, there are functions to "freeze" the measurements and to set them to zero. The angle finder is powered by a standard 9-volt battery. The auto-off function helps to save the charge.
Key features:

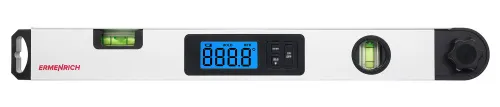

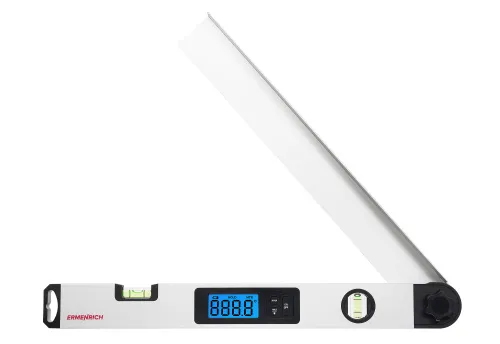

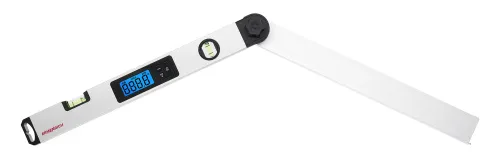

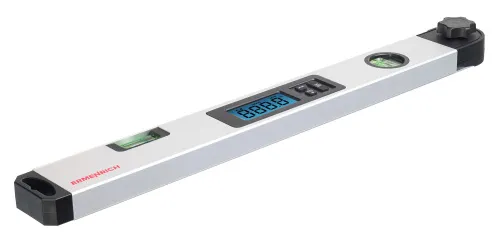

- Digital angle finder with LCD screen and two bubble levels
- Hold function, miter angle calculation, set zero function
- Rugged body made of high-strength plastic and aluminum
- Powered by batteries, auto-off after 5 minutes of inactivity
Product ID | 81744 |
Brand | Ermenrich |
Warranty | 5 years |
EAN | 5905555003160 |
Package size (LxWxH) | 4x47x7 cm |
Shipping Weight | 0.51 kg |
Type of angle finder | digital |
Accuracy | ±0.5° |
Units of measurement | degrees |

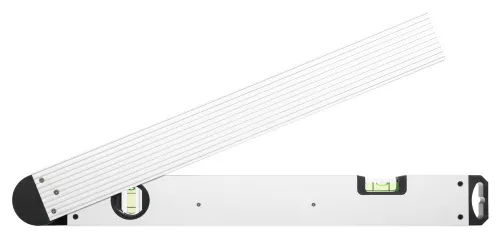

Working range | 0–230° |
Miter cut calculation | ✓ |

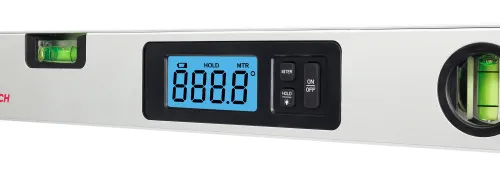

LCD screen | yes |
Measurement resolution | 0.01° |
Calibration | automatic |
Hold function | ✓ |
Zero set function | ✓ |

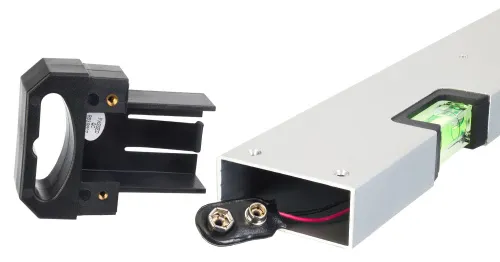

Power supply | 9V battery (not included) |
Auto power off | 5 min |
Body | aluminum, high-strength ABS plastic |
Operating temperature range, °C | 0...+50 |
Length, mm | 450 |
Additional | built-in bubble level – 2 pcs. |
