Optical, with a compensator. Magnification: 32x. Objective lens diameter: 36mm

Air damping
Compensator type
32
The magnification of the optical level determines the degree of magnification of the image
1
The accuracy is a value shown in millimetres that indicates the maximum height measurement error per 1km (double run levelling)
Availability

Product ID 81430
Brand Ermenrich
Warranty 5 years
EAN 5905555016092
Package size (LxWxH) 19x28x20 cm
Shipping Weight 2.295 kg
Description

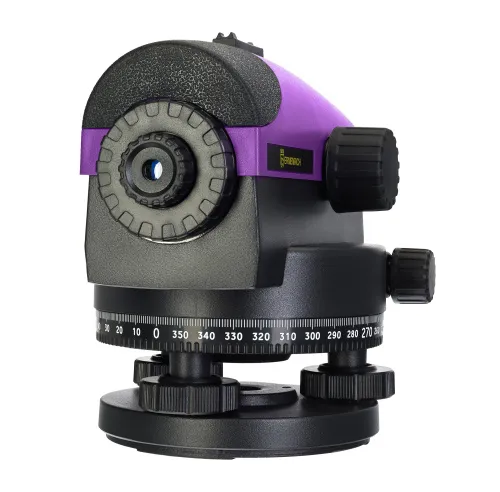

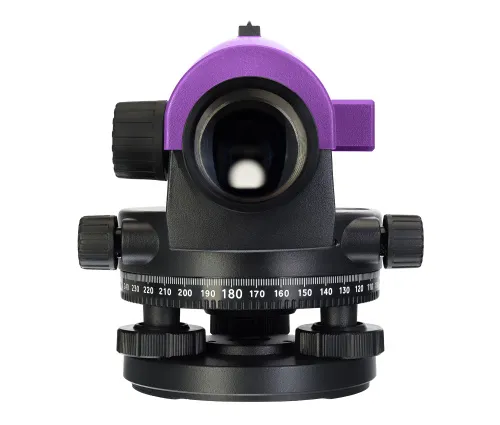

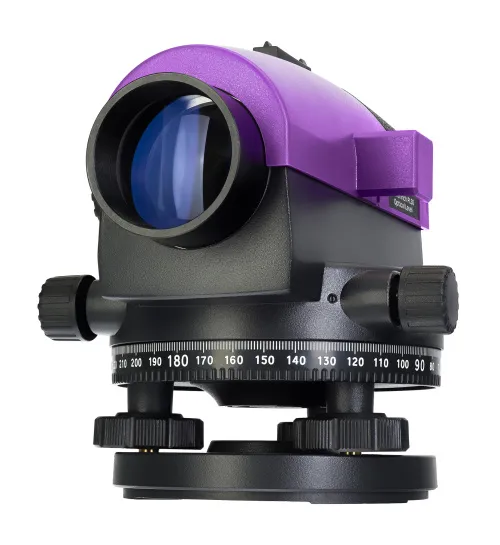

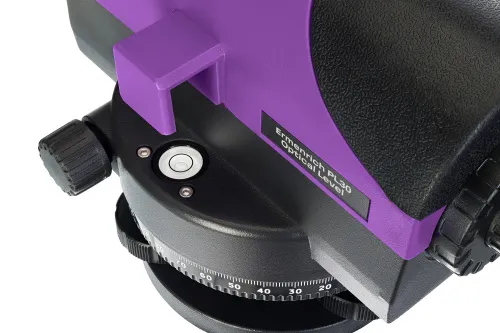

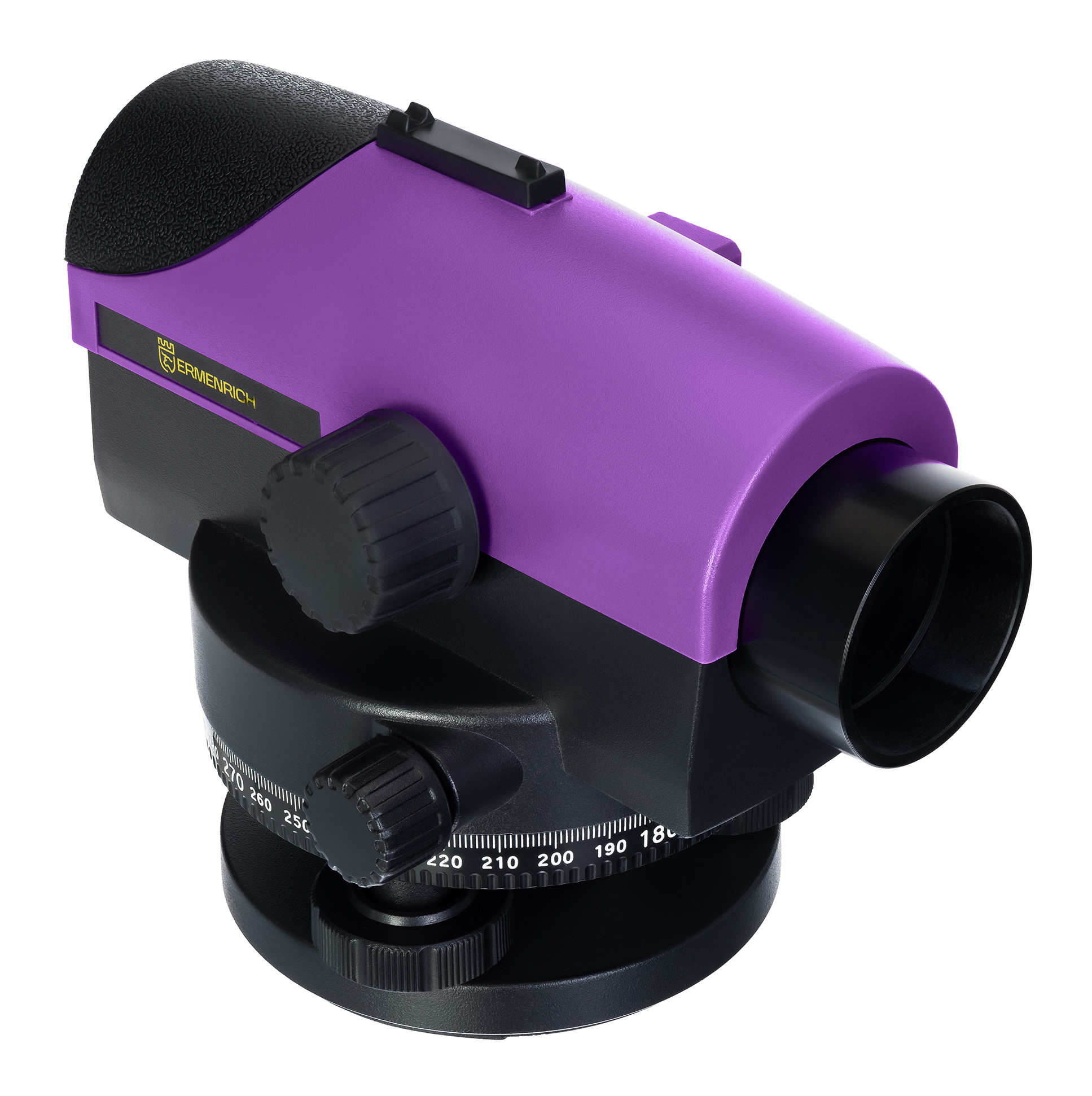

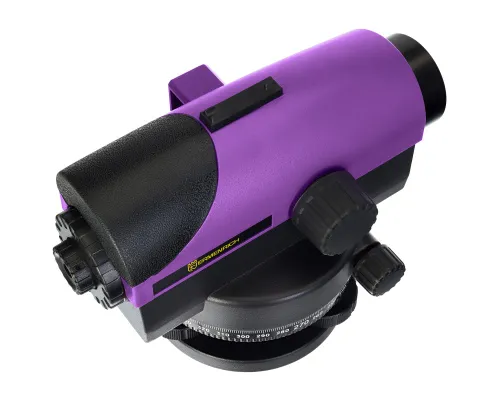

The Ermenrich PL30 Optical Level is an instrument that can measure the vertical level (height difference) between two points at a distance from each other, angles in the horizontal plane, and the distance to an object. The magnification is 32x, which enables you to see the millimeter scale of a leveling rod at a distance of up to about 50 meters (160ft). The “E” metric graduations will be visible across the entire working distance – up to 120 meters (390ft). The optical level is equipped with a compensator that aligns the target line automatically, which makes it easier and more comfortable to work with. The compensator is robust and the measurement accuracy is high.

The optical level is great for construction, landscaping, and surveying work. It can be used for professional purposes (construction of large buildings and facilities, marking out footings), and in solving everyday household tasks (leveling the ground, building a fence, installing a greenhouse). The device is robust and splash-proof. The kit includes alignment tools.

Please note: To measure with the optical level, you will need a leveling rod and tripod (not included).

Key features:

  • Optical, with a compensator
  • Erect image of the sighting target
  • Magnification – 32x, lens diameter – 36mm
  • Water-resistant

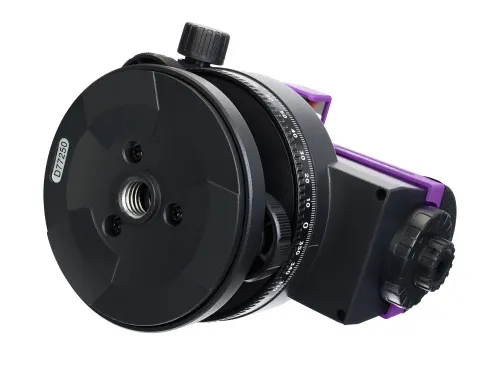

  • M16 or 5/8" tripod thread

The kit includes:

  • Optical level

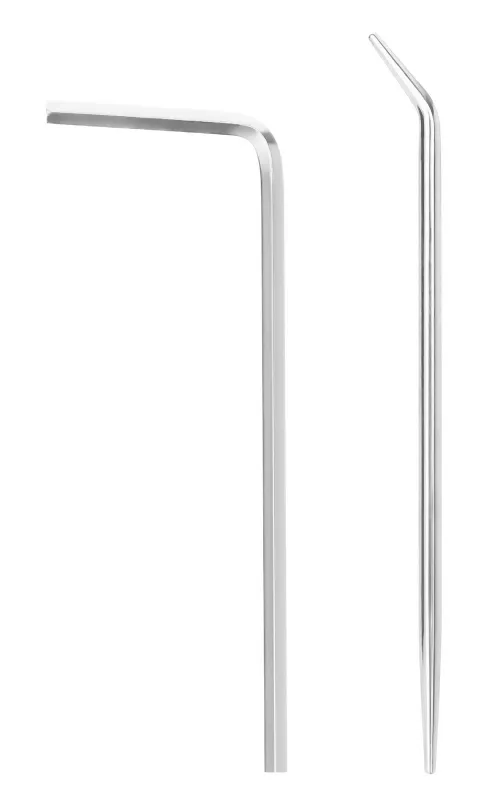

  • Adjusting pin
  • Hex key wrench
  • User manual and warranty card
Specifications
Product ID 81430
Brand Ermenrich
Warranty 5 years
EAN 5905555016092
Package size (LxWxH) 19x28x20 cm
Shipping Weight 2.295 kg
Level type optical
Compensator type air damping
Magnification, x 32
Objective lens diameter (aperture), mm 36
Image of the sighting target erect
Field of view, ° 1°30'
Close focus, m 0.3
Height accuracy for an individual measurement 1.6mm/30m
Standard deviation per 1km (double run leveling), mm 1
Compensator working range, ang. min ±15
Accuracy of target line adjustment, ang. sec. ±0.3
Compensator lock
Stadia ratio 100
Horizontal circle 1° or 1gon
Sensitivity of the bubble 8'/2mm
Body high-strength ABS plastic
Waterproof IP54, splash-proof
Adaptable to a tripod M16 or 5/8"
