AZ5 altazimuth mount

Availability

Product ID	70498
Brand	Sky-Watcher
EAN	2400000045205
Telescope control	manual
Mount type	alt-azimuth, semi-fork
Maximum payload, kg	5

Description

The easy-to-use precision mount for astronomy and observing in the countryside

wide range of adjustment - all the way from the zenith down to the valley
rapidly moveable, without clamping, via slipper clutch
precision adjustment on two axes with worm gear

This mount lets you equally easily and straightforwardly take observe the night sky or observe nature during the daytime. It is ideal for small refractor telescopes up to five kilograms in weight.

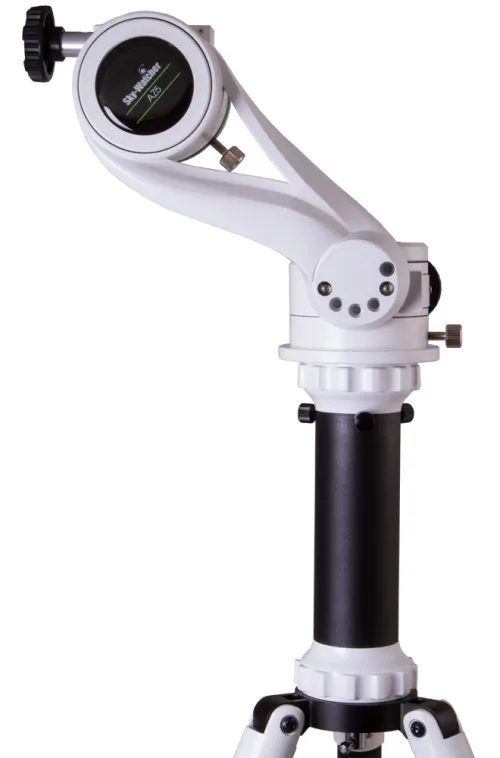

In addition to the tripod and mounting head, an extender (half-pier) is also included.

Specifications

Product ID	70498
Brand	Sky-Watcher
EAN	2400000045205
Telescope control	manual
Mount type	alt-azimuth, semi-fork
Maximum payload, kg	5
Mount fork	two-stage, adjustable
Range of height adjustment (latitude of observation location)	from −50° to 90°
Azimuth position adjustment range (approx.)	360°
Drive	worm gear, 96 teeth
Tripod included	✓
Tripod	aluminum
Tripod weight, kg	1.8
Accessory tray	✓
Optical tube mounting mode	dovetail plate
Mount weight, kg	2.3
