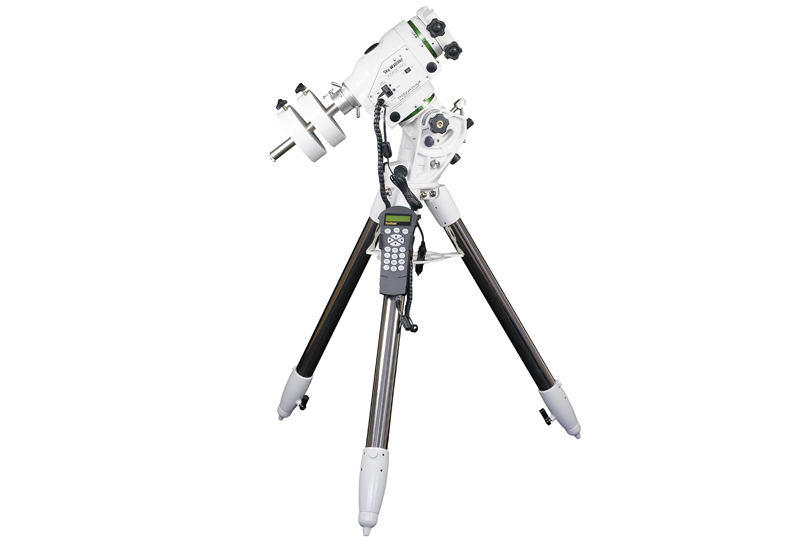

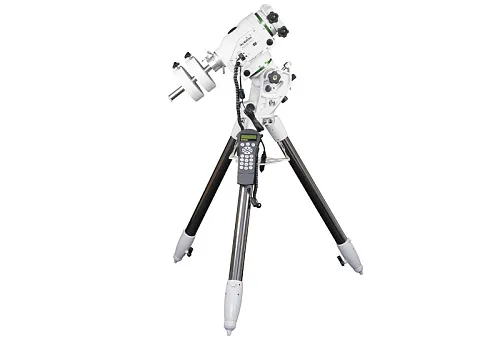

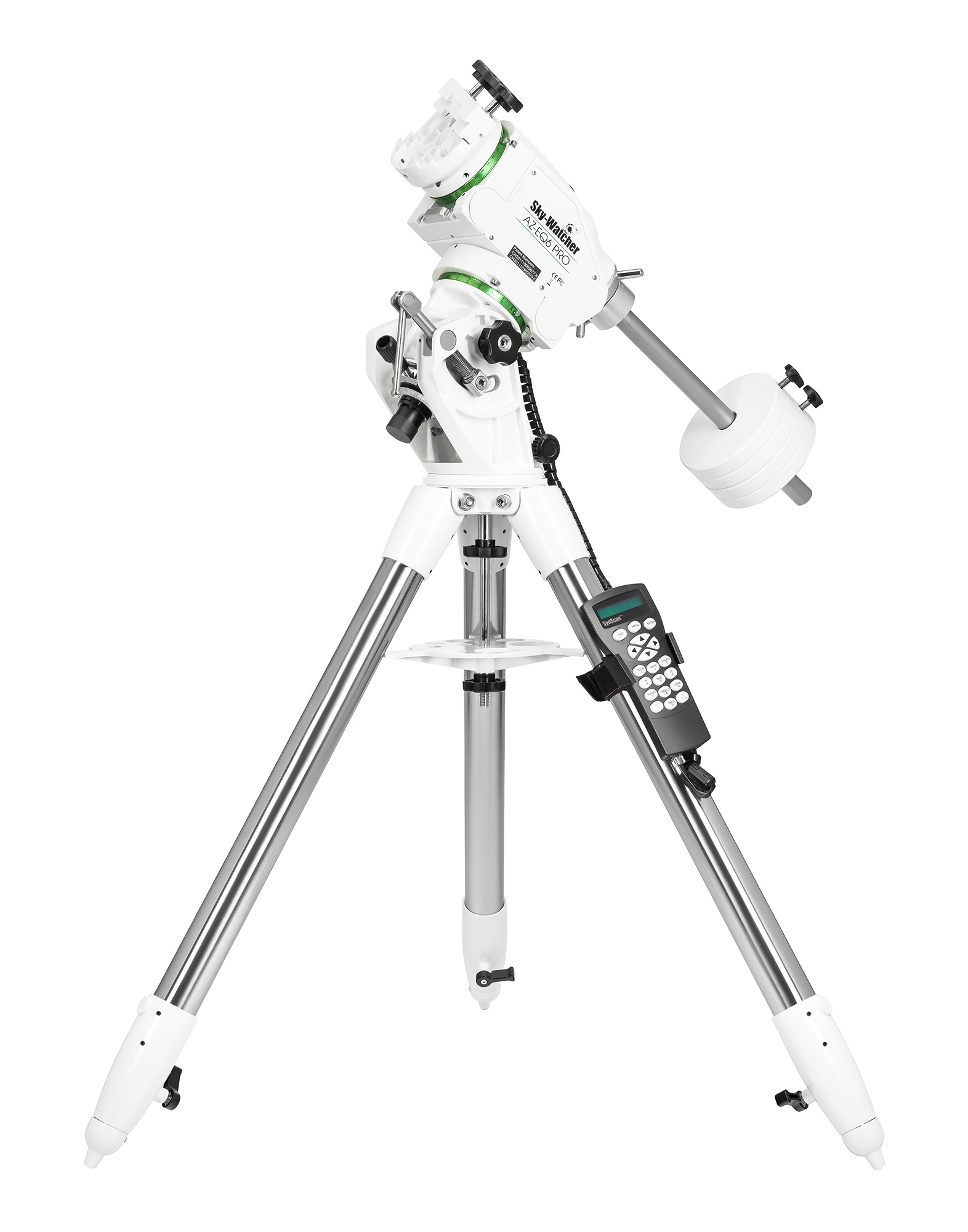

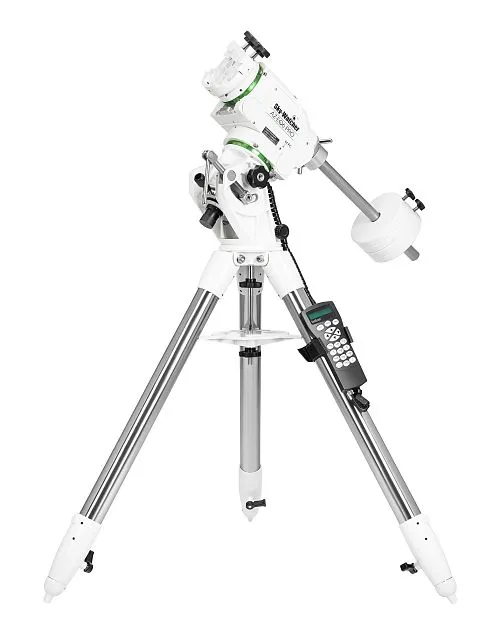

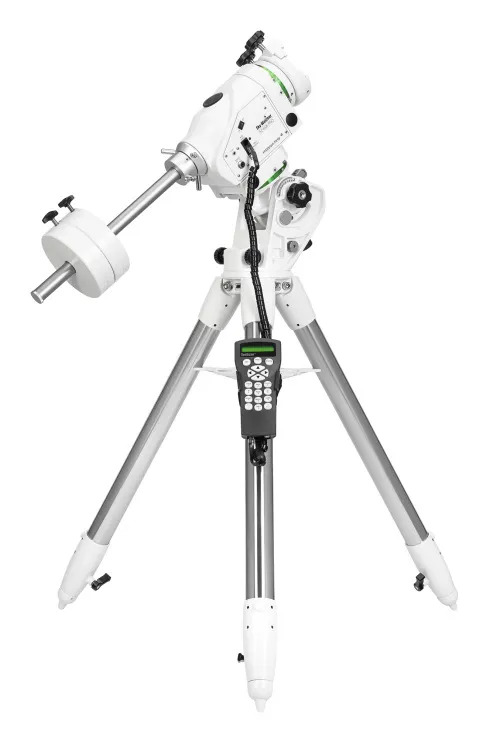

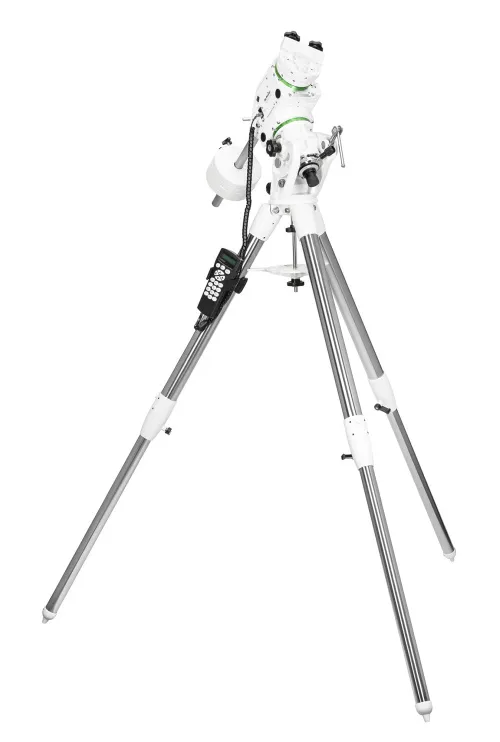

Sky-Watcher AZ EQ6 SynScan equatorial mount

Availability

Product ID 70510
Brand Sky-Watcher
EAN 2400000045311
Package size (LxWxH) 116x53x33 cm
Shipping Weight 42.35 kg
Telescope control autoguide
Description

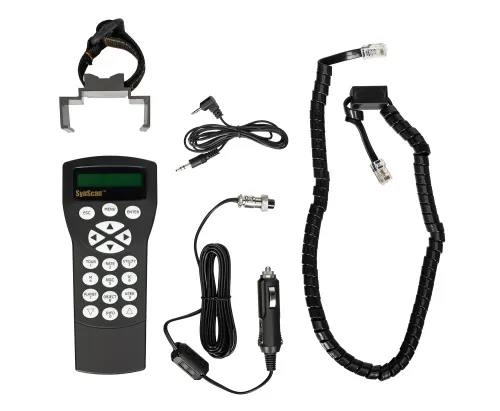

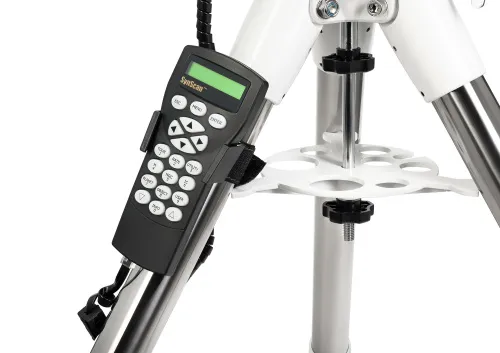

The Sky-Watcher AZ-EQ6 SynScan mount gives optimal stability and pointing accuracy for a wide variety of heavy professional photo and video equipment. It is a hybrid mount with alt-azimuth capability for general use and equatorial capability for astrophotography use. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestial objects with its database.

AZ-EQ6 SynScan is capable of carrying heavy-duty photographic equipment for professional shooting and video recording. It is a very efficient transportable mount weighing only 15 kg, for a load capacity of 20 kg (counterweight excluded).

Freedom Find™ - tracking made easy!

With the patented Freedom Find (dual-encoder) technology which allows the telescope to be moved manually or electronically in either axis without losing its alignment or positional information. After moving to a new object the telescope will automatically begin to track the new object accurately. No re-setup is required in one observing session.

Features:

  • German Equatorial / Alt-Az dual mode
  • Permanent periodic error correction(PPEC). PPEC can be trained with Autoguider or PC.
  • Belt drive - Super smooth PE curve. Low backlash, silent slewing.
  • DSLR Electronic Shutter Release Port for batch exposures of astrophotography.
  • Include two dual-fit (45mm/75mm) saddle for mounting two telescopes.
  • New motor controller with higher torque and accuracy.
  • Driving Resolution: Approximately 0.14 arc seconds
  • Autoguider Port
  • PEC control in EQ mode
  • Alignment methods: 1, 2, or 3-star alignment (EQ) / brightest star or 2-star alignment (AZ)
  • Telescope Connection: 2 x dual-fit saddle plates supplied accepting 45mm & 75mm dovetail bars
  • RA/DEC Worm Gears: D=92.5mm, 180 teeth, brass
  • RA/DEC Axes: D=40mm, steel

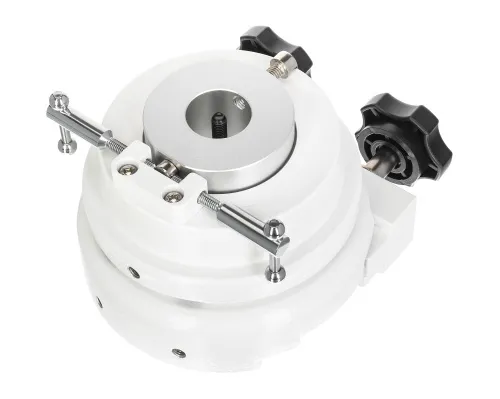

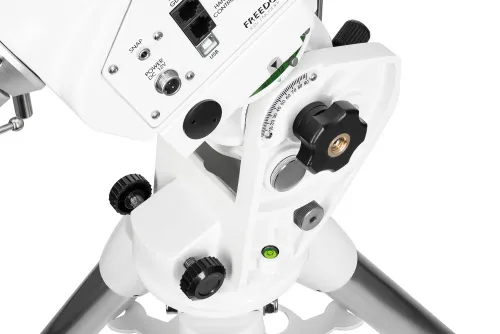

  • Latitude Adjustment Range: 10° to 70° (EQ), 90° (AZ)

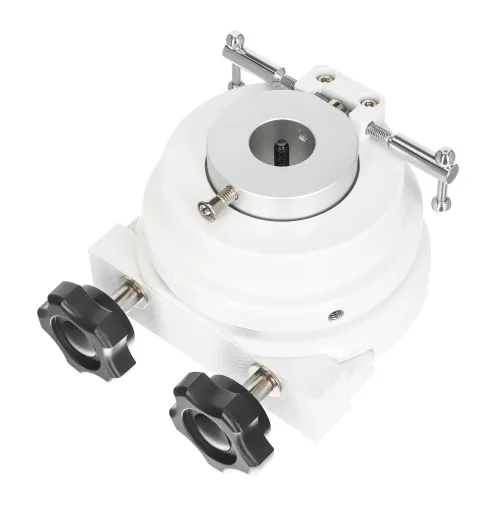

  • Azimuth Adjustment Range: About ± 9°
Specifications
Product ID 70510
Brand Sky-Watcher
EAN 2400000045311
Package size (LxWxH) 116x53x33 cm
Shipping Weight 42.35 kg
Telescope control autoguide
Maximum payload, kg 20
Azimuth position adjustment range (approx.) ±9°
Drive hybrid stepper motors (1.8°/step)
Gearbox worm gear (180:1) + toothed belt drive (48:12) + stepper motor (64 microsteps/1.8°)
Resolution 9,216,000 steps/revolution, approx. 0.14 arcsec
Maximum pointing speed, deg/s 4.2
Tracking rate sidereal, Lunar, Solar
Auto-guiding speeds 0.125x, 0.25x, 0.5x, 0.75x, 1x
Periodic error correction (PEC)
Periodic error correction (PEC) constant, 100 segments
Freedom Find technology
Autoguider
Catalogs of objects Messier, NGC, IC, SAO, Caldwell, double stars, variable stars, stars with their own names, planets
Ports autoguide port

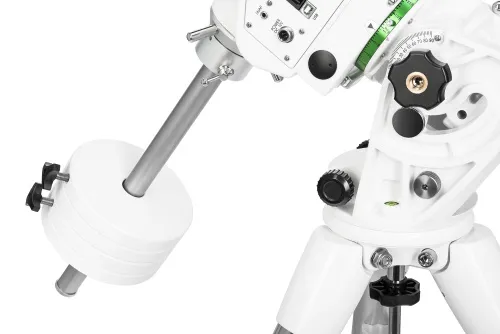

Counterweight rod length, mm 202 + 150
Counterweight rod diameter, mm 25
Counterweight weight, kg 5
Tripod included
Tripod stainless steel
Tripod weight, kg 7.5
Support diameter, mm 50
Accessory tray
Optical tube mounting mode 45mm and 75mm dovetail bar
Mount weight, kg 15.4
