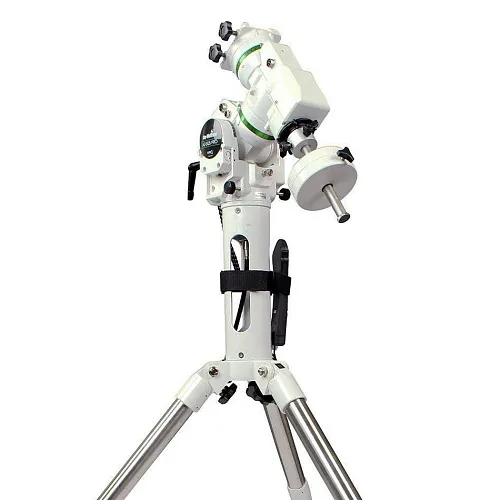

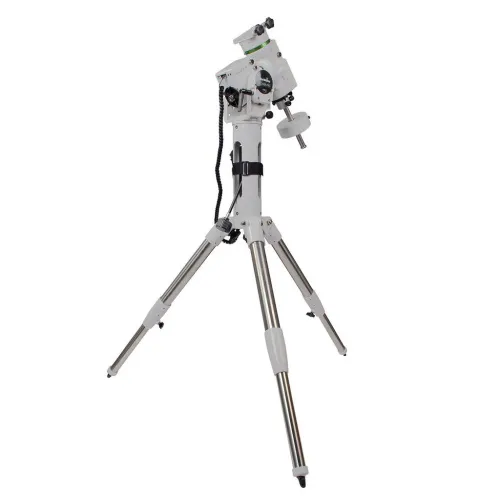

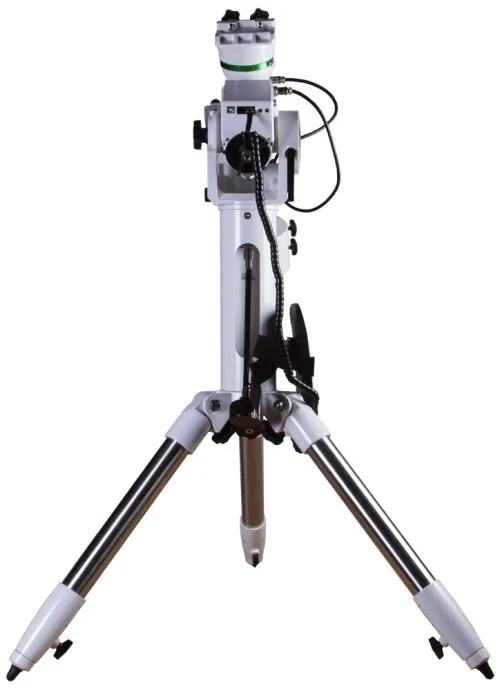

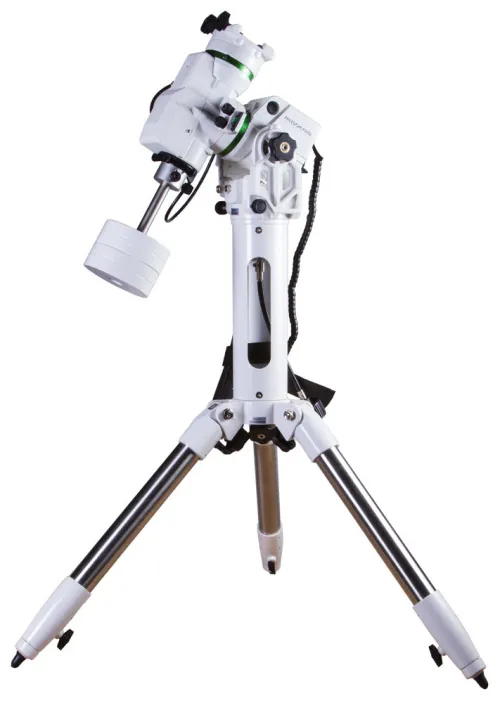

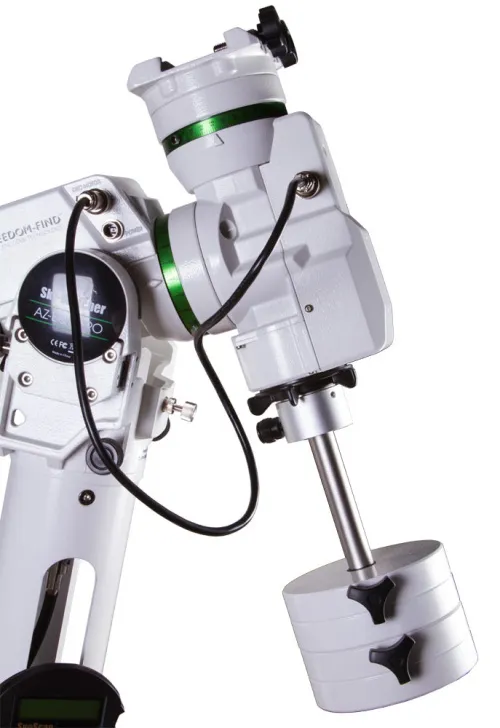

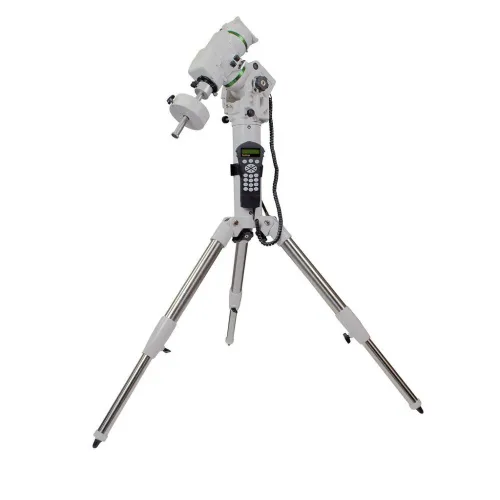

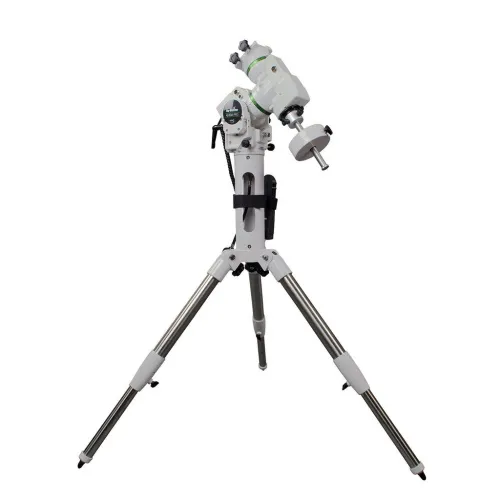

Sky-Watcher AZ-EQ5 SynScan GOTO Mount with Pier Tripod

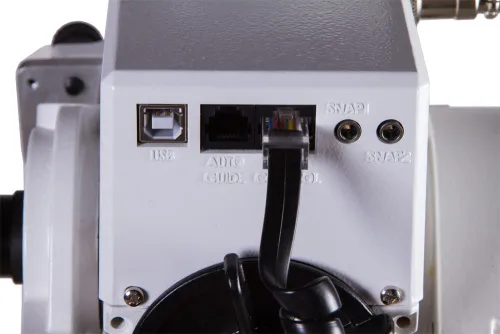

The Sky-Watcher AZ-EQ5 SynScan GoTo mount is equally useful as an EQ mount or operating in AZ mode. The AZ-EQ5 SynScan features hybrid stepper motor drives on both axes for smooth slewing at up to 4.2° .The mount accepts the standard ST-4 style autoguider input for astrophotography, and also has a DSLR shutter control port. Supplied with a SynScan handset with dual AZ/EQ firmware, it can automatically find and track 42,900+ celestial objects with its database.

The AZ-EQ5 GT mount is equipped with an index on its R.A. worm. Thus the motor controller can keep track of the current position of the worm. After a proper PEC training routine, in which the training data is stored in the motor controller permanently, a user can start the periodic error correction (PEC) at any time to improve the tracking performance for short focal length astrophotography. A training process is not required in the next observing session (assuming that the polar alignment is always accurate). Thus this is a Permanent Period Error Correction (PPEC). A user can train the mount with manual guiding or auto-guiding. For detailed instruc­tions, please refer to the relevant section in the SynScan hand controller instruction manual.
