Perfect for mid-sized telescopes. Load capacity: 14.96kg (33lbs)

Availability

Product ID 72621
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824214750
Package size (LxWxH) 103x51x25 cm
Shipping Weight 20.4 kg
Description

A high-quality, portable GoTo German equatorial mount with AudioStar® Hand box. You can also use it as a stand-alone mount. This durable mount is perfect for mid-sized telescopes. It features a Vixen-style dovetail receiver for mounting observing optics up to 14.96kg (33lbs). This mount ensures smooth tracking due to its sturdy design and low-cogging servo-motors.

You can track through long exposures due to Smart Drive for recording permanent periodic error correction (PPEC). This mount handles slight load imbalances easily. It is practical for seamless imaging of the pictures of the night sky: you do not have to perform a meridian flip.

The LX85™ mount comes with an integrated autoguider port so that you can easily connect to an autoguider camera. AudioStar® hand controller database includes over 30,000 objects. Just press a button to view a desired object. A special feature, AudioStars®Astronomer Inside, includes a built-in speaker that plays over four hours of educational content about the celestial objects! Explore wonders of the night sky with Meade LX85 German Equatorial Mount and Tripod!

Specifications
Product ID 72621
Brand Meade Instruments Corp.
Warranty 2 years
EAN 0643824214750
Package size (LxWxH) 103x51x25 cm
Shipping Weight 20.4 kg
Telescope control autoguide, manual
Mount type equatorial, German
Maximum payload, kg 15
Setting circles
Latitude adjustment range, ° 20 — 60
Drive DC servo motors with encoders
Slew rate up to 4 degrees per second
Tracking rate Lunar, Solar, sidereal
Periodic error correction (PEC)
Backlash compensation yes
Autoguider
Hand controller AudioStar
Objects database 30,000
Ability to connect to PC yes

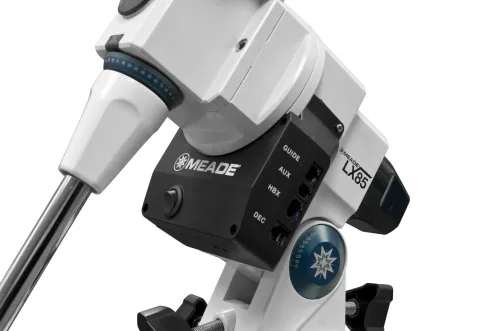

Ports RS-232, AUX, 12V accessory power slot, ST-4 autoguider port, DEC, for connecting an electric focuser
Power supply 12V, 5A DC
Counterweight rod length, mm 330
Counterweight rod diameter, mm 20
Counterweight weight, kg 4
Tripod included
Tripod steel
Accessory tray
Optical tube mounting mode dovetail plate (Vixen standard)
