Meade Infinity AZ Mount

The price is valid only for the online store and may differ from the prices in retail stores.

Recommended for Meade or other brand optical tubes up to approximately 2.7kg. 1/4-20 bolt

Availability

Product ID	71866
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0643824210318
Package size (LxWxH)	90x21x20 cm
Shipping Weight	5.81 kg

Description

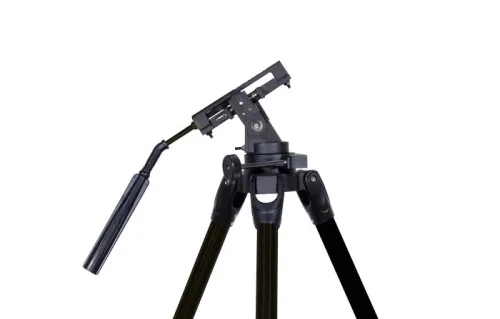

The Meade Infinity AZ Altazimuth Mount is a lightweight but sturdy and very easy to use altitude-azimuth mount featuring aluminum construction with tubular steel legs for excellent rigidity. Features a convenient pan handle control for coarse movement, and dual slow-motion control cables for fine movement on both the vertical and horizontal axes. Recommended for Meade or other brand optical tubes up to approximately 2.7kg. Telescope attachment is with a captive 1/4-20 bolt as used on many popular telescopes, spotting scopes, and sports optics. Telescope not included. Tripod is fully height adjustable from 30" to 48" for convenient viewing. Weight is 3.5kg.

Features:

Alt-azimuth mount
Single thumbscrew mounting
Slow-motion control cables
Easy to use mount design
Full-size aluminum tripod with accessory tray

Specifications

Product ID	71866
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0643824210318
Package size (LxWxH)	90x21x20 cm
Shipping Weight	5.81 kg
Telescope control	manual
Mount type	alt-azimuth
Maximum payload, kg	2.7
Slow-motion controls	along both axes
Tripod included	✓
Tripod height (adjustable), mm	762–1219
Accessory tray	✓
Optical tube mounting mode	standard 1/4" thread
Mount material	aluminum
Additional	pan handle
