Levenhuk Ra Zoom 8–24mm, 1.25" Eyepiece

The price is valid only for the online store and may differ from the prices in retail stores.

Varied focal length eyepiece. Focal length: 8–24mm. Field of view: 29.8°

8 elements in 5 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	45121
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006437
Package size (LxWxH)	12x5x5 cm
Shipping Weight	0.32 kg

Description

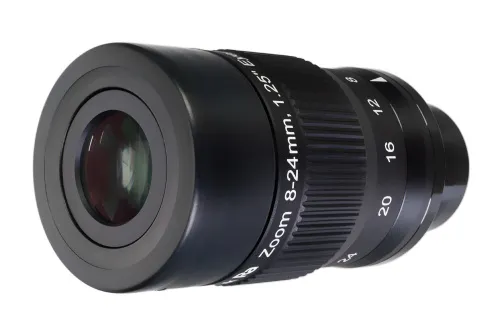

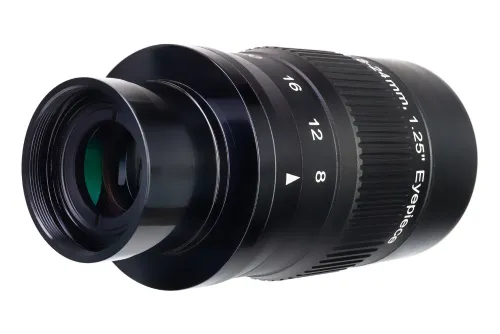

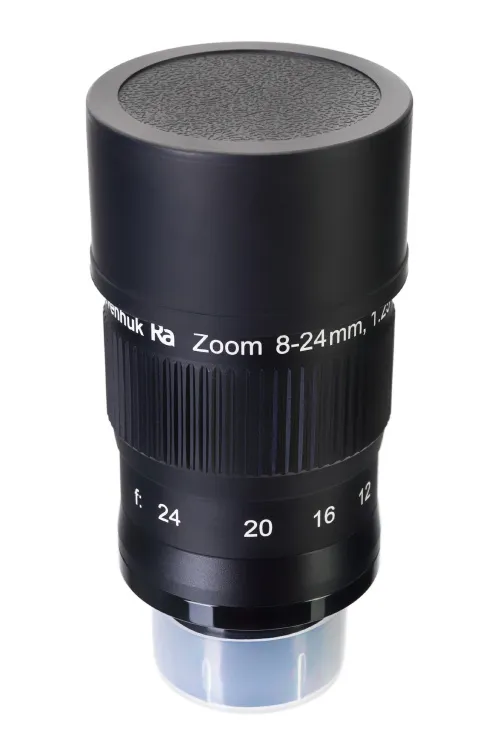

The Levenhuk Ra Zoom 8–24mm 1.25" eyepiece features an unusual design that allows you to smoothly change the focal length during observations within the 8–24 mm range. Therefore, it can replace a number of eyepieces. It can be used for searching the objects in the night sky, and for the studying the Moon and the planets of the solar system.

All optical elements are made of glass that was fully multi-coated. Due to the long eye relief, the entire field of view is fully visible. This also allows for observing when wearing glasses. For even more comfortable observations, this eyepiece is equipped with a twist-up rubber eyecup.

The eyepiece barrel diameter is 1.25". The body is made of aluminum.

Features:

Multi-element fully multi-coated glass optics
Varied focal length from 8mm to 24mm
Long eye relief for a better view
Twist-up rubber eyecup for comfortable observations when wearing glasses
Universal eyepiece for planetary and deep space observations

The kit includes:

Eyepiece
Protective caps – 2 pcs
Cleaning wipe

Specifications

Product ID	45121
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006437
Package size (LxWxH)	12x5x5 cm
Shipping Weight	0.32 kg
Type	with zoom
Optical scheme	8 elements in 5 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, mm	8.39 — 24.24
Field of view, °	29.8
Eye relief, mm	25.16
Suitable for observations while wearing glasses	✓
Eyepiece diameter, mm	20.3
Body	aluminum
Eyecup	rubber, twist-up
Protective caps included	✓

References
and downloads

High-resolution images (zip)

(ZIP, 9.82 Mb)

click to
download

Questions and Answers

Lawrence White (2016.04.06)

What's the difference between Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece and Levenhuk Zoom 8-24 mm Eyepiece? I can see that field of view differs. But if it's zoom eyepiece, isn't field of view supposed to be varying?

Customer service:

Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece and Levenhuk Zoom 8-24 mm Eyepiece are close analogues. Yes, you are correct, field of view varies depending on focal length.

Jason A (2015.12.04)

Is the AFOV 29.8 across all focal lengths? Or is it wider at the 8mm that the 24, and if so, how much (what is the AFOV range)? Thanks!

Customer service:

Dear Jason, thank you for your inquiry.
This model is currently out of stock. The AFOV range cannot be checked. Please let us know if you need any further assistance.

Phil Horne (2015.07.30)

Can I use this eyepiece with Sky-Watcher BK MAK102EQ2?

Customer service:

Yes, Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece is suitable for your telescope.

Chad Johnston (2014.02.27)

Is it reasonable to buy this eyepiece for Celestron PowerSeeker 70az?

Customer service:

Yes, Levenhuk Zoom 8-24 mm Eyepiece is suitable for use with your telescope. This eyepiece will allow you to get a wide range of magnifications.

bryan cook (2014.01.29)

Hello! Which Zoom eyepiece would you recommend for Levenhuk Ra 200N F5 OTA (considering price-quality ratio) Perhaps, other manufacturers?

Customer service:

With regard to price-quality ratio Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece will be a perfect choice.

Daniel Newman (2013.10.24)

and Celestron C70 mini? Does it fit in?

Customer service:

Yes, you can use Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece with this telescope.

Daniel Newman (2013.10.23)

Could you please tell me what maximum and minimum magnification will be together with Celestron C90 Mak? Thank you!

Customer service:

Levenhuk Ra 1.25" 3x Zoom 8-24 mm Eyepiece together with this scope will give: minimal - 50x and maximum - 150x magnification.
