Wide-angle eyepiece. Focal length: 9mm. Field of view: 68°

8 elements in 6 groups
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated
The optics coating improves the image quality
Availability

Product ID 35006
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555006413
Package size (LxWxH) 17x6x6 cm
Shipping Weight 0.38 kg
Description

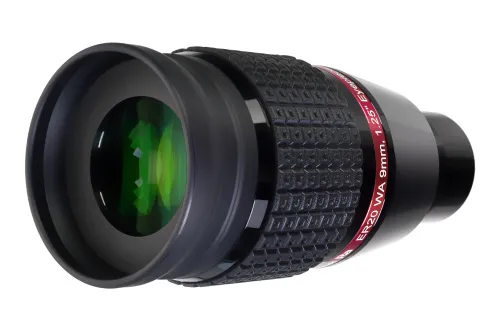

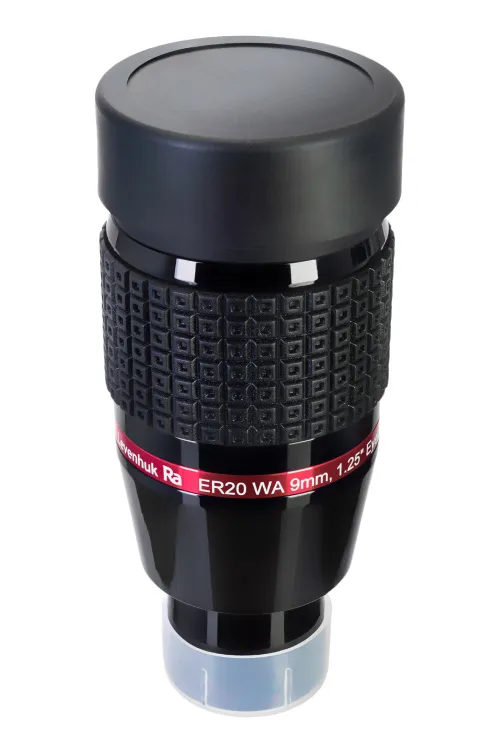

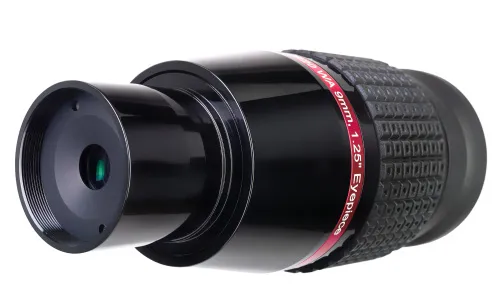

Levenhuk Ra ER20 WA 9 mm is a wonderful accessory for any telescope. Wide-field optics provide bright images of deep space objects. This eyepiece will be indispensable for telescopes with average aperture when studying stars and globular clusters. For other telescopes, it will improve the quality of the picture when observing binary stars and the planets of the solar system.

The Levenhuk Ra ER20 WA 9mm, 1.25" Eyepiece features an apparent field of view of 68° and a long eye relief that allows you to observe the entire field of view. All optical elements are made of fully multi-coated glass. The image quality is good. It allows you to observe the fine details of stand-alone astronomical objects. There aren't any distortions in the center of the field of view. The eyepiece can be used with the 2x Barlow lens.

This eyepiece is fitted with a fold-down rubber eyecup that provides comfortable long-term observations, even when wearing glasses. With its 1.25'' barrel diameter, this eyepiece can be used with a telescope of any brand.

Features:

  • Multi-element fully multi-coated glass optics
  • Wide field of view with high flatness, minimum optical distortion in the center
  • High picture quality on high-aperture optical systems
  • Can be used to observe nebulae, star clusters, galaxies
  • Long eye relief allows for observing the entire field of view

The kit includes:

  • Eyepiece
  • Protective caps – 2 pcs
  • Cleaning wipe
Specifications
Product ID 35006
Brand Levenhuk, Inc., USA
Warranty 2 years
EAN 5905555006413
Package size (LxWxH) 17x6x6 cm
Shipping Weight 0.38 kg
Type wide-field
Optical scheme 8 elements in 6 groups
Barrel diameter, in 1.25
Optics material optical glass
Lens coating fully multi-coated
Focal length, mm 9
Field of view, ° 68
Eye relief, mm 20
Suitable for observations while wearing glasses
Eyepiece diameter, mm 29.2
Body aluminum
Eyecup rubber, foldable
Protective caps included
