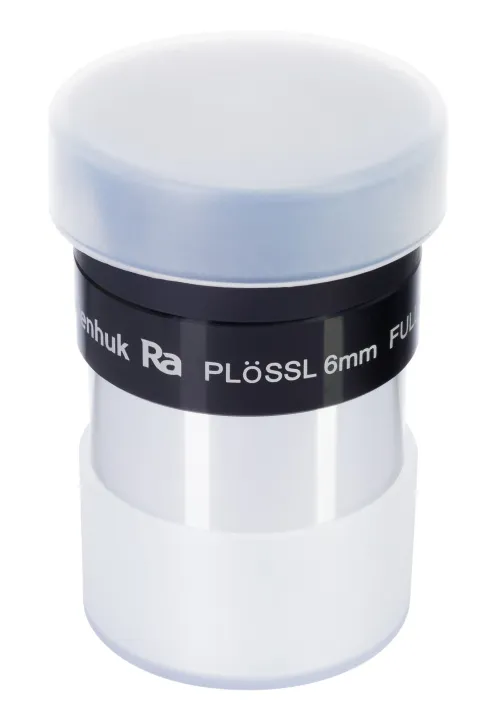

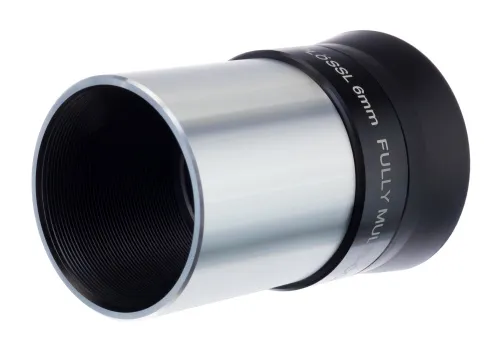

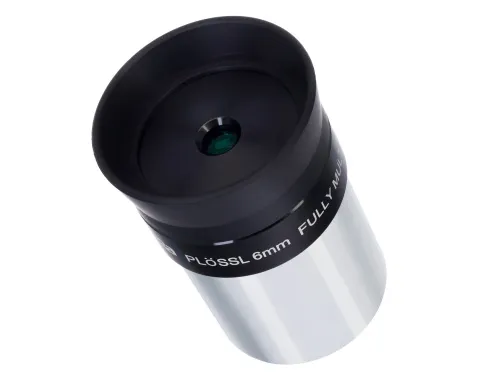

Levenhuk Plössl 6mm Eyepiece

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 6mm. Field of view: 50°

Plössl, 4 elements in 2 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50757
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003726
Package size (LxWxH)	8x4x4 cm
Shipping Weight	0.07 kg

Description

The Levenhuk Plössl 6mm eyepiece is an accessory for telescopes with a 1.25'' focuser. It is compatible with telescopes of any optical design: catadioptrics, refractors, and reflectors. Being installed on any telescope, the eyepiece allows for high magnification. Therefore, it is a good choice for outer space observations. The light filter thread makes the eyepiece compatible with various filters: lunar, filters for observing the solar system planets, or ones for observing deep sky objects.

The multi-element optics are made of fully multi-coated glass. The field of view is 50°. The body is made of aluminum that makes it durable and robust. The fold-down eyecup is made of rubber.

Features:

Planetary eyepiece with a 50° field of view
Provides high magnification with any telescope
Fully multi-coated glass optics
The standard barrel diameter makes it suitable for most telescopes.
Thread for a light filter installation

The kit includes:

Eyepiece
Protective caps – 2 pcs

Specifications

Product ID	50757
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003726
Package size (LxWxH)	8x4x4 cm
Shipping Weight	0.07 kg
Type	standard
Optical scheme	Plössl, 4 elements in 2 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, mm	6
Field of view, °	50
Eye relief, mm	5
Eyepiece diameter, mm	1.25
Filter thread	✓
Filter thread	M28.5x0.6mm
Body	aluminum
Eyecup	rubber, foldable
Protective caps included	✓
Operating temperature range, °C	-5...+35

References
and downloads

High-resolution images (zip)

(ZIP, 7.16 Mb)

High-resolution images (rar)

(X-RAR, 3.68 Mb)

click to
download

Questions and Answers

Rick Ritter (2015.09.02)

Does the eyepiece have threads so that filters can be attached? Judging by the photos I can tell that this eyepiece has such thread, but Levenhuk Ra Plossl 6 mm 1.25" Eyepiece does not... That means I won't be able to use a filter with it, right?

Customer service:

Levenhuk Ra Plossl 6 mm Eyepiece does have a filter thread as well as Levenhuk Plossl 6 mm Eyepiece.

Eddy (2015.06.14)

Could you please tell me if I understand it correctly... In order to achieve the highest practical power of my Celestron NexStar 127 SLT telescope which is 250x (focal length is 1500mm) I can use this eyepiece, right? Can I install filters on this eyepiece?

Customer service:

Yes, Levenhuk Plossl 6 mm Eyepiece will help you to obtain the highest practical power of your telescope. Yes, the eyepiece has a filter thread.

Loyd Vang (2014.11.30)

What is the difference between this eyepiece and Levenhuk Ra Plössl 6 mm 1.25" Eyepiece?

Customer service:

Levenhuk Ra LER 6 mm Eyepiece has longer eye relief (20mm). It is very convenient for people who wear glasses and provides for more comfortable observations in general.

Randal Grimes (2014.10.17)

what about 6-8mm eyepiece? and Barlow lens? are those suitable for Celestron AstroMaster 114EQ?

Customer service:

Yes, this eyepiece is suitable, the magnification will be 125x-166x. As for Barlow lenses 1.25" models fit your telescope.

Randal Grimes (2014.10.17)

could you help me please? which eyepieces can be used with Celestron AstroMaster 114EQ?

Customer service:

For use with your telescope you will need eyepieces with 1.25" (31.75mm) barrel diameter. To obtain the maximum useful magnification of the instrument you will need an eyepiece with 4.5-mm focal length.

Stuart Sears (2014.06.17)

Thank you for your answer. Excuse me for one more silly question: how does eye relief affect comfort of use? The description says that I can observe in glasses? Does it mean that I won't have to press my eye to the eyecup, and I can observe with 20 mm distance? Thanks in advance!

Customer service:

Yes, that's right. With the Levenhuk Ra LER 6 mm eyepiece you can observe wearing glasses at a distance of 20 mm. With the Levenhuk Plossl 6 mm eyepiece you need to keep your eye very close to the eyepiece.

Stuart Sears (2014.06.16)

Hello! What, apart from the price, is the difference between Levenhuk Plossl 6 mmand Levenhuk Ra LER 6 mm? Is it reasonable to buy the more expensive one? Or image quality will be the same? I have Celestron PowerSeeker 80 EQ. The telescope itself is not expensive, so should I equip it with such an advanced accessory? Thanks in advance!

Customer service:

The main difference is eye relief. Levenhuk Ra LER 6 mm eyepiece has long eye relief of 20 mm. Image quality will be almost the same, but with Levenhuk Ra LER your observations will be more comfortable.

Allen Brooks (2014.05.14)

Is it going to provide sharp image with Celestron 80 GTL (900-mm focal length) while observing planets? Or is better to purchase 12 mm eyepiece?

Customer service:

Yes, Levenhuk Plossl 6 mm Eyepiece is perfect for planetary observations.

David Simmons (2014.05.14)

Will it give me sharp views with Celestron 80 GTL (900 mm focal length) during planetary observations? Or 12 mm eyepiece would be better?

Customer service:

Yes, Levenhuk Plossl 6 mm Eyepiece is perfect for planetary observations.

Bob Forbes (2014.01.20)

Will this eyepiece alone be more preferable than 9 mm eyepiece combined with 2x Barlow?

Customer service:

Yes, Levenhuk Plossl 6 mm Eyepiece is a preferable choice.

ross cotton (2014.01.20)

Is it suitable for use with Celestron C70 Mini Mak? What is the maximum magnification? Will the image be alright or blurred? Or there's no point in buying this eyepiece?

Customer service:

Levenhuk Plossl 6 mm Eyepiece used with this scope will provide 125-fold increase. It can be calculated easily by dividing the focal length of the tube (750) by the focal length of the eyepiece (6 mm). Accordingly, this value will be within the scope's capabilities and the picture will be sharp.

Seth Whitley (2014.01.03)

What's the difference between {{ {{ http://www.levenhuk.com/products/eyepiece-levenhuk-ra-plossl-6/.link.link }} }} and {{ {{ http://www.levenhuk.com/products/ocular-levenhuk-p63/.link.link }} }} besides the price of course:)

Customer service:

Levenhuk Ra Plossl 6 mm 1.25" Eyepiece and Levenhuk Plossl 6.3 mm Eyepiece have the same optical design, the only difference is focal length.

Ruby Riggs (2013.12.18)

Thank you for the answer but one thing is not clear to me... I can get 140x by using the eyepiece alone or I still should combine it with 3x Barlow?

Customer service:

You will get this magnification by using eyepiece only (without any Barlow lens).

Ruby Riggs (2013.12.17)

Can I use this eyepiece with 3x Barlow lens and Sky-Watcher BK707AZ2 telescope? Or should I buy 2x Barlow? I want to achieve 130x increase.

Customer service:

To obtain the highest practical power (140x) you should use 5 mm eyepiece, for example, Levenhuk Ra LER 5 mm Eyepiece
