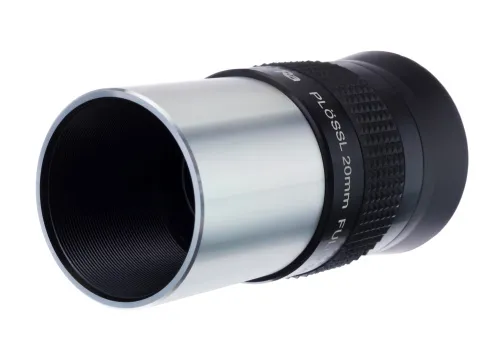

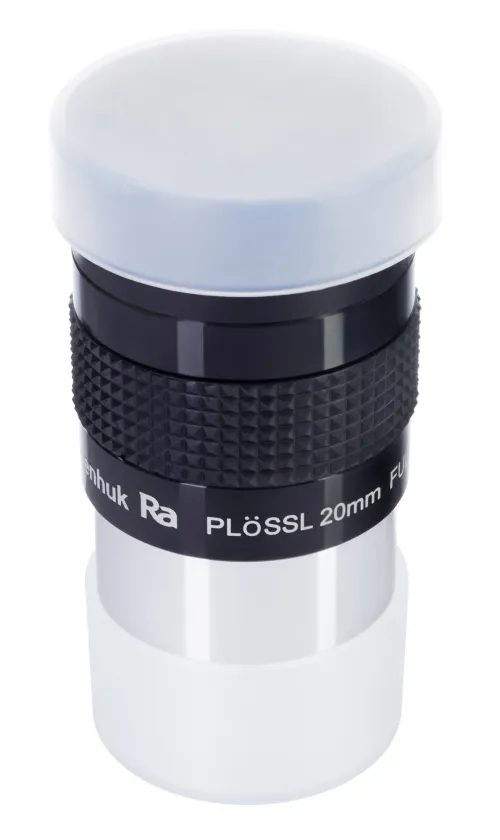

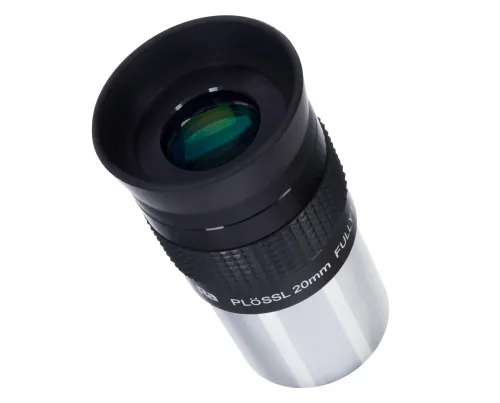

Levenhuk Plössl 20 mm Eyepiece
Classic symmetrical eyepiece. Focal length: 20mm. Field of view: 50°
4 elements in 2 groups, Plössl
Optical design is a set of optical elements that is assembled in a certain way
1.25
The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required
Fully multi-coated
The optics coating improves the image quality
| Product ID | 50761 |
| Brand | Levenhuk, Inc., USA |
| Warranty | 2 years |
| EAN | 5905555003764 |
| Package size (LxWxH) | 8x4x4 cm |
| Shipping Weight | 0.1 kg |
Description
The Levenhuk Plössl 20 mm multi-element eyepiece with a 1.25'' barrel diameter is a good choice for searching and studying astronomical objects. It can be used with telescopes of any brand and optical design. The eyepiece features a filter thread that can provide more interesting and exciting observations of planets, the moon, nebulae, and galaxies.
The optics are made of fully multi-coated glass, so the eyepiece renders a crisp and clear image across the entire field of view. The field of view is 50°. The eyecup is made of rubber, and it can be folded or unfolded, if it is necessary. The eyepiece's body is aluminum.
Features:
- Universal multi-element eyepiece
- Lenses are made of multi-coated optical glass
- The field of view is 50°
- Aluminum body; fold-down rubber eyecup
- Standard 1.25'' barrel diameter; filter thread
The kit includes:
- Eyepiece
- Protective caps – 2 pcs
Specifications
| Product ID | 50761 |
| Brand | Levenhuk, Inc., USA |
| Warranty | 2 years |
| EAN | 5905555003764 |
| Package size (LxWxH) | 8x4x4 cm |
| Shipping Weight | 0.1 kg |
| Type | standard |
| Optical scheme | 4 elements in 2 groups, Plössl |
| Barrel diameter, in | 1.25 |
| Optics material | optical glass |
| Lens coating | fully multi-coated |
| Focal length, mm | 20 |
| Field of view, ° | 50 |
| Eye relief, mm | 17 |
| Suitable for observations while wearing glasses | ✓ |
| Eyepiece diameter, mm | 1.25 |
| Filter thread | ✓ |
| Filter thread | M28.5x0.6mm |
| Body | aluminum |
| Eyecup | foldable, rubber |
| Protective caps included | ✓ |
| Operating temperature range, °C | -5...+35 |
