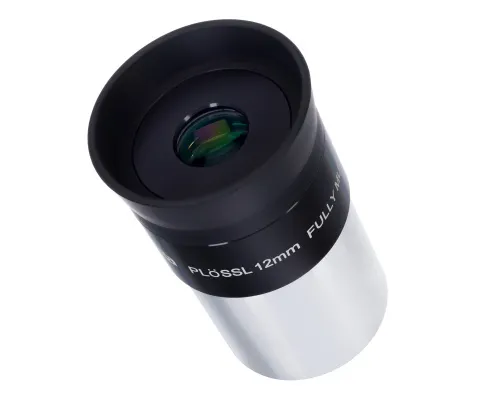

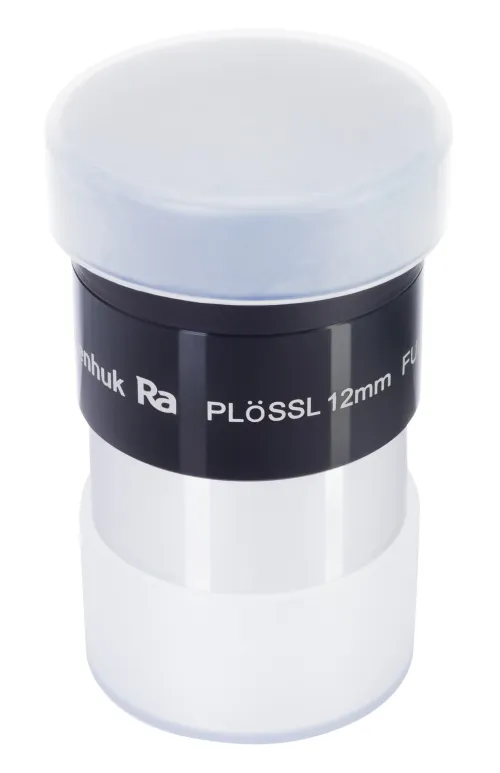

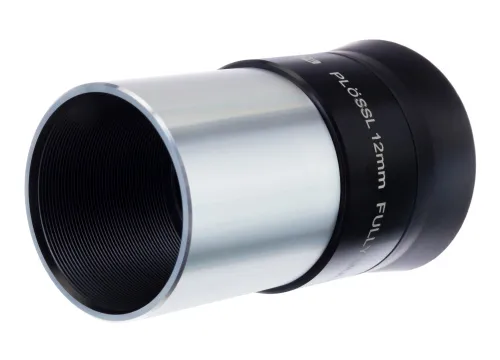

Levenhuk Plössl 12mm Eyepiece

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Classic symmetrical eyepiece. Focal length: 12mm. Field of view: 50°

Plössl, 4 elements in 2 groups

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50759
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003740
Package size (LxWxH)	8x4x4 cm
Shipping Weight	0.08 kg

Description

Levenhuk Plössl 12mm is a universal eyepiece that will be a good addition for any telescope. It is a good choice for refractor, reflector, or catadioptric. Due to the 1.25'' barrel diameter, there are no compatibility problems. The eyepiece is suitable for outer space and deep sky observations, and it can expand the kit of any astronomer, as it features a thread for light filters installation.

The multi-element optics is made of glass. The lenses are fully multi-coated, so that they provide the sharp and clear image. The field of view is 50°. The eyepiece's body is made of aluminum. The fold-down eyecup is made of rubber.

Features:

Classic universal eyecup for telescopes
Convenient 50° field of view; a 1.25'' barrel diameter
Multi-element optical design; fully multi-coated lenses
Aluminum body; fold-down rubber eyecup
Light filter thread

The kit includes:

Eyepiece
Protective caps – 2 pcs

Specifications

Product ID	50759
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003740
Package size (LxWxH)	8x4x4 cm
Shipping Weight	0.08 kg
Type	standard
Optical scheme	Plössl, 4 elements in 2 groups
Barrel diameter, in	1.25
Optics material	optical glass
Lens coating	fully multi-coated
Focal length, mm	12
Field of view, °	50
Eye relief, mm	9
Eyepiece diameter, mm	1.25
Filter thread	✓
Filter thread	M28.5x0.6mm
Body	aluminum
Eyecup	rubber, foldable
Protective caps included	✓
Operating temperature range, °C	-5...+35
