Meade 16MP Monochrome Deep Sky Imager IV

see all

The price is valid only for the online store and may differ from the prices in retail stores.

DSI-IV is the ideal camera for all of your astrophotography pursuits

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

3.8x3.8

The pixel size is directly proportional to the sensor’s sensitivity

23@4640x3506 (8-bit mode)

The frame rate is the number of frames switching per second; it determines the picture clarity when shooting moving objects

Availability

Product ID	75181
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0753215774760
Package size (LxWxH)	25x27x13 cm
Shipping Weight	2.385 kg

Description

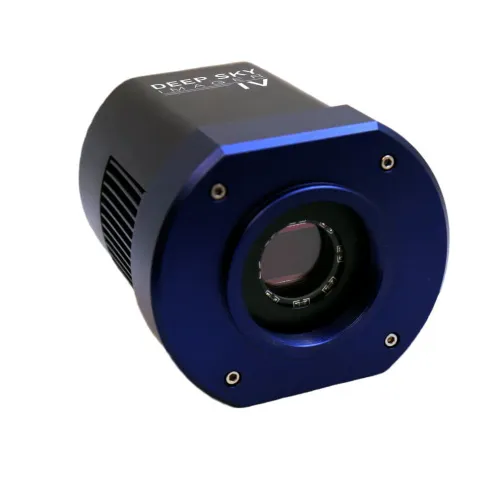

Meade 16MP Monochrome Deep Sky Imager IV is equipped with a 16MP Panasonic CMOS image sensor, regulated two-stage thermo-electric cooler, and 3.8µm pixels, the new DSI-IV is the ideal camera for all of your astrophotography pursuits. The low-noise, high-resolution and fast USB 3.0 readout make this camera suitable for both deep-sky and planetary imaging, making it one of the most versatile astronomy cameras available.

The DSI-IV offers immense value beyond the camera itself. It not only comes with its own high-quality, weather-resistant hard carrying case and AC power adapter, but a new version of SkyCapture camera control software is included as well. With complete camera control, SkyCapture can run automatic image capture sequences without the need to purchase additional software. Capture high-quality images and video of galaxies, nebulae, and other beautiful objects of the night sky with Meade's DSI-IV.

Minimum system requirements

Operating System: Microsoft Windows XP or later CPU Requirements: Equal to Intel Core2 2.8GHz or Higher Memory & USB Port: 2GB or More. USB 3.0

Features:

Large 4/3" format 16 Megapixel, low noise CMOS Sensor
Dual-stage, regulated, thermo-electric cooler suppresses thermal noise for clean, high-quality images
Includes SkyCapture camera control software
ASCOM compatible, drivers included
23 Frames Per Second at Full Resolution (faster when subframed)
Captures in both video mode and still frame mode, suitable for lunar, planetary, and deep sky astro-imaging
Compatible with Windows operating system

The kit includes:

DSI IV Camera
M42 to 2" Nosepiece
AC Power Adapter (US plug only)
USB 3.0 cable
Desiccant plug
Meade SkyCapture Software CD

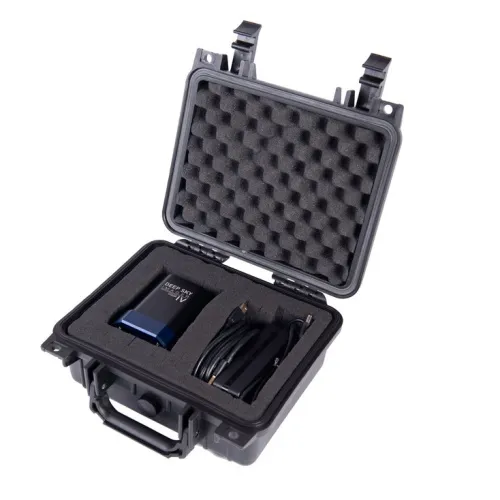

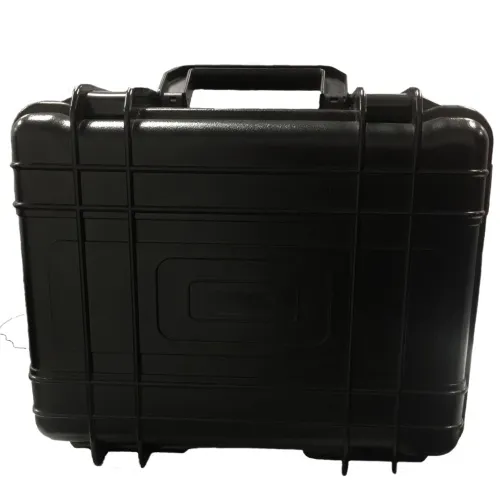

Hard carrying case

Specifications

Product ID	75181
Brand	Meade Instruments Corp.
Warranty	2 years
EAN	0753215774760
Package size (LxWxH)	25x27x13 cm
Shipping Weight	2.385 kg
Sensor	MN34230PLJ CMOS (Panasonic)
Color/monochrome	monochrome
Megapixels	16
Maximum resolution, pix	4640x3506
Sensor size	4/3" (17.6x13.3mm)
Pixel size, μm	3.8x3.8

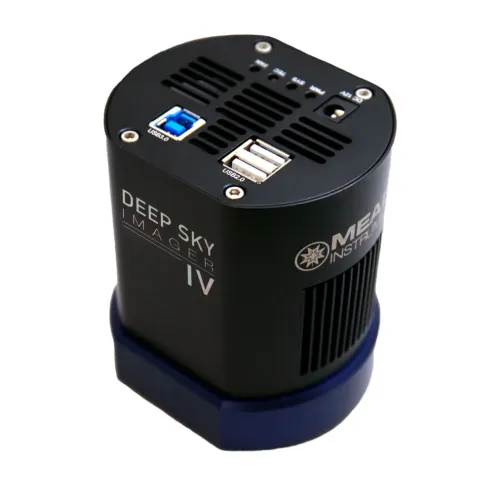

Interface connectors	USB 2.0, USB 3.0
Read noise	1.2e @30db gain
Frame rate, fps at resolution	23@4640x3506 (8-bit mode)
Back focal length, mm	17.5
ADC digit capacity (bit)	12
Binning	1x1, 2x2, 3x3
Place of installation	50.8-mm (2") diameter focuser, instead of an eyepiece
T-mount	M42x0.75
Image format	.jpeg, .bitmap, *.fits
Video format	.avi, .ser
Spectral range, nm	350–1050
Shutter type	ERS (electronic rolling shutter)
Exposure control	0.15ms–3600s
Power supply	DC, 5V, from computer USB port; a 12V, 3A adapter for Peltier element
Operating temperature range, °C	-10...+50
Storage temperature range,°C	-20 — 60
Operating humidity range, %	30 — 80
Additional	maximum cooling: 40–45°C below ambient

References
and downloads

Quick start guide: Meade Deep Sky Imager IV telescope digital cameras (pdf) EN

(PDF, 3.59 Mb)

User manual: Meade SkyCapture software (pdf) EN

(PDF, 4.67 Mb)

Meade SkyCapture software (zip)

(ZIP, 75.74 Mb)
