Camera for telescope. Designed for astrophotography

Availability

Product ID 72321
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922054377
Package size (LxWxH) 16x15x6 cm
Shipping Weight 0.355 kg
Description

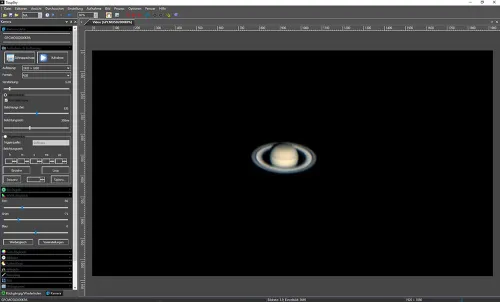

Start now with digital astrophotography and capture the sky with the brand new Bresser Full HD Deep-Sky Camera and Guider. That's absolutely new: great camera for multiple types of astro imaging and for guiding. Not only suitable for planets but also for deep-sky objects like galaxies, nebulae and clusters. Dedicated astro imaging software ToupSky to support video preview, video record, video processing, image capture and process, dark field correction and raw data output. Easy to use but with tools of the professionals.

One of the main characteristics of the new back-illuminated SONY IMX290 CMOS sensor is the high sensitivity to light which makes it possible to capture also deep-sky objects without active cooling. SONY has increased the quantum efficiency up to 77% at 533nm wavelength which is much better than other CEMOS sensors could achieve in the past.

Connect this camera with the build-in ST-4 port direct to your telescope mount and take pictures also with long exposures times of several minutes. Now you have always a suitable guiding star available because of the extra light-sensitve camera also at short exposure times. ST-4 connecting cable is also included. Easy automatic tracking at it's best.

You can use this camera with any guiding-telescopes or off-axis-guider which accept a 1.25" barrel, 1.25" filter thread (M28.5x0.6) or C-mount adapter thread (1"x1/32").

Important notes:

This is not a stand-alone guider-camera. You always need a Windows 7/8/10 computer for taking pictures and for autoguiding.

The autoguider software is not included. You can use PHD Guiding, Guidedog, Metaguide, Guidemaster (freeware) or AstroArt, MaxIm DL (chargeable).

Features:

  • Allround camera with SONY IMX290 CMOS color sensor
  • Planet and deep-sky imaging and guiding
  • Full HD photos and videos

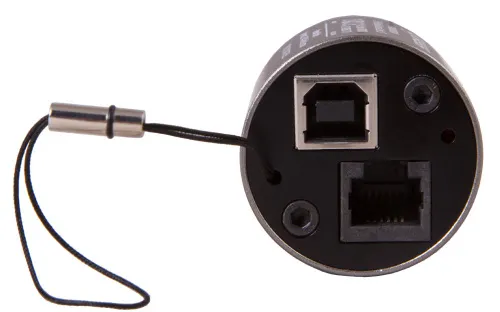

  • Autoguider ST-4 compatible
  • Professional ToupSky software and ASCOM driver included
  • Windows 7, 8 and 10 compatible

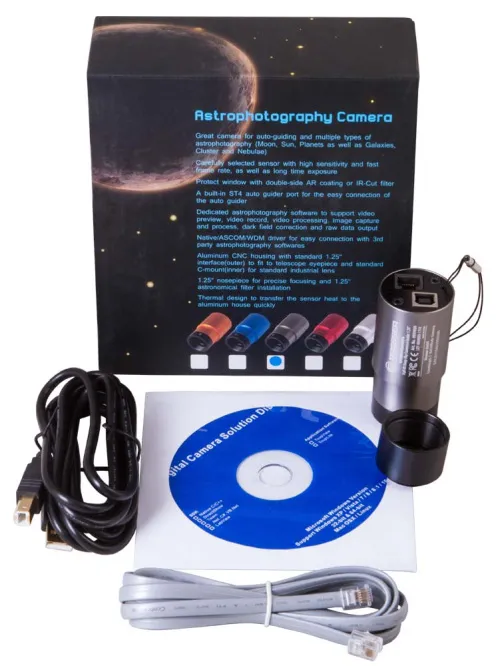

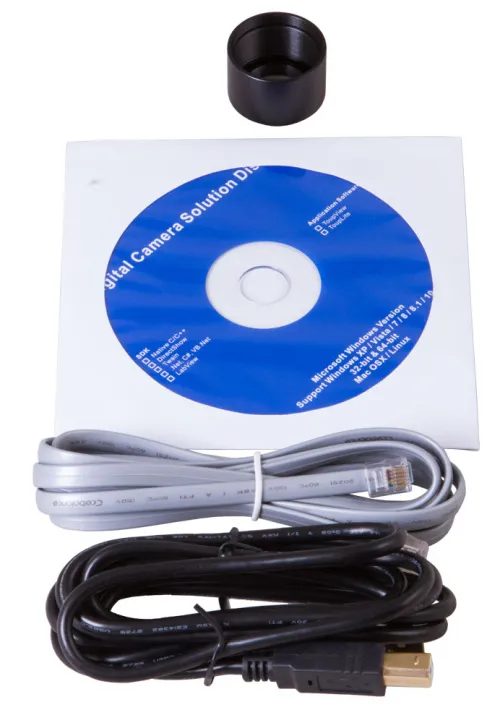

The kit includes:

  • Full HD camera
  • C-mount adapter
  • USB 2.0 PC connecting cable with 200cm length
  • Interface cable for ST-4 autoguider port with 150cm length
  • Dust cap for camera barrel
  • Software CD
  • User manual
Specifications
Product ID 72321
Brand Bresser GmbH, Germany
Warranty 2 years
EAN 4007922054377
Package size (LxWxH) 16x15x6 cm
Shipping Weight 0.355 kg

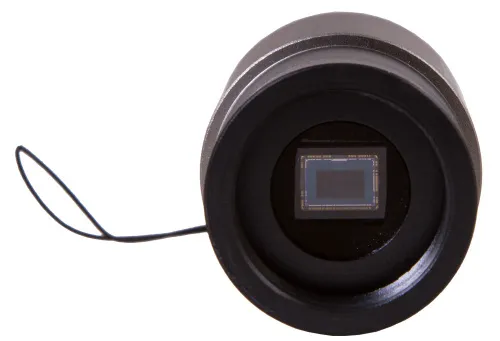

Sensor BSI-CMOS, SONY IMX290
Color/monochrome color
Megapixels 2.1
Maximum resolution, pix 1936x1096 (Full HD)
Sensor size 5.6x3.1mm
Pixel size, μm 2.9x2.9
Exposure time 66ms – 16min
Video recording
Frame rate, fps at resolution 15@1936x1096
ADC digit capacity (bit) 8/12 (selectable)
Binning 2x2
Place of installation 31.75-mm (1.25") diameter focuser, instead of an eyepiece
Output USB 2.0
System requirements Windows 7/8/10
Mount type C-mount + 1.25" filter thread
Body aluminum
Operating temperature range,°C -10...+50
Operating humidity range, % 30 — 80
Additional protection strap at camera housing, ST-4 compatible autoguider
