Levenhuk Ra 1.25" Star Diagonal, 99%

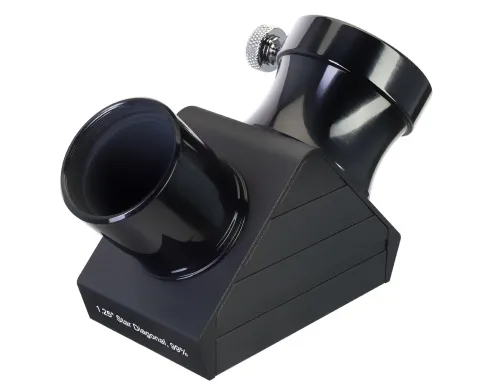

photo Levenhuk Ra 1.25" Star Diagonal, 99%, 3

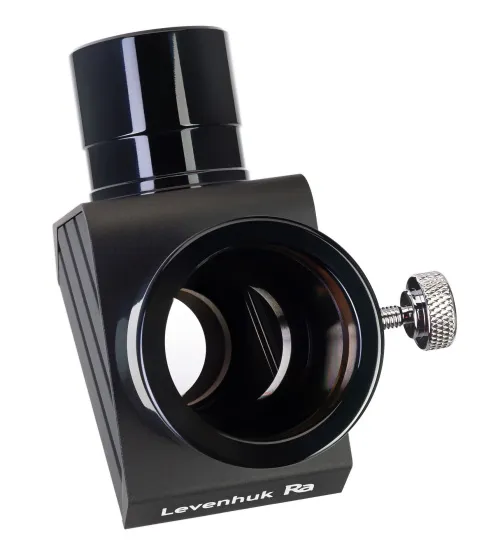

photo Levenhuk Ra 1.25" Star Diagonal, 99%, 4

The price is valid only for the online store and may differ from the prices in retail stores.

With dielectric coating. Reflection angle: 90°. Barrel diameter: 1.25"

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

99% reflectivity, dielectric

The optics coating improves the image quality

90°

The optical axis bend is the angle by which a diagonal mirror or prism deflects the light beam

Availability

Product ID	45132
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006444
Package size (LxWxH)	13x10x9 cm
Shipping Weight	0.275 kg

Description

Levenhuk Ra 1.25'' Star Diagonal, 99% is a high-quality diagonal mirror for refractors and catadioptric telescopes that allows them to produce an upright but left-to-right mirrored image. The mirror is designed for telescopes with a 1.25" focuser.

The mirror features a dielectric coating that reflects 99% of the light, thereby preventing it from scattering, and so it provides high-quality views. This coating also protects the mirror from oxidation. Usually, this process leads to the dimming of the mirror surface, and the transmitted image becomes less bright.

Features:

99% reflection power dielectric coating
Not subjected to oxidation, makes the transmitted image clearer and brighter
Body is made of anodized aluminum
Reflection angle: 90°. Barrel diameter: 1.25"

The kit includes

Diagonal mirror
Protective caps – 2 pcs
Cleaning wipe

Specifications

Product ID	45132
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555006444
Package size (LxWxH)	13x10x9 cm
Shipping Weight	0.275 kg
Barrel diameter, in	1.25
Lens coating	99% reflectivity, dielectric
Optical axis curve	90°
Body	aluminum, anodic coating
Protective caps included	✓
