Levenhuk ED-2x Barlow Lens

see all

The price is valid only for the online store and may differ from the prices in retail stores.

Achromatic. Extra-low dispersion lenses. Magnification: 2x. Barrel diameter: 2"

Achromat, 2 elements

Optical design is a set of optical elements that is assembled in a certain way

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

Fully multi-coated

The optics coating improves the image quality

Availability

Product ID	50774
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003672
Package size (LxWxH)	14x8x8 cm
Shipping Weight	0.46 kg

Description

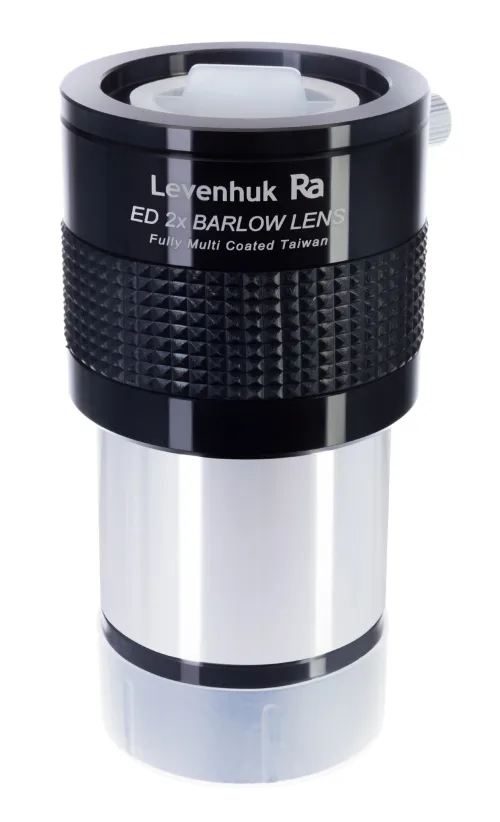

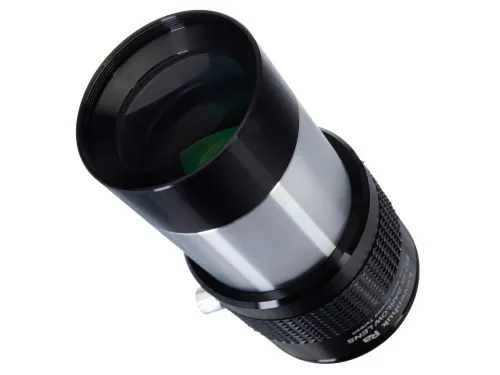

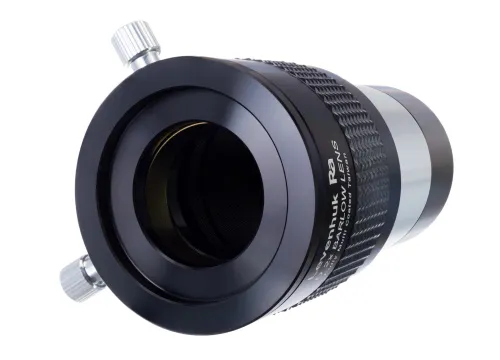

The Levenhuk ED-2x Barlow lens is an optical accessory that doubles the focal length and magnification of the telescope. Due to the multi-element optical design and achromatic fully multi-coated lenses that are made of extra-low dispersion glass, the accessory transmits a clear and sharp image across the entire field of view and doesn't distort the image. The Barlow lens is compatible with different eyepieces, thereby expanding the capabilities of the telescope. It also features a filter thread.

This Barlow lens is designed for 2" focusers, but with a 1.25"–2" adapter (purchased separately), it can also be used with the more common 1.25" focusers.

Features:

Achromatic Barlow Lens with 2x magnification
Extra-low dispersion glass optics
Multilayer coating
It features a filter and compression ring thread.
2" barrel diameter

The kit includes:

Barlow lens
Protective caps – 2 pcs

Specifications

Product ID	50774
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555003672
Package size (LxWxH)	14x8x8 cm
Shipping Weight	0.46 kg
Optical scheme	achromat, 2 elements
Barrel diameter, in	2
Optics material	ED
Lens coating	fully multi-coated
Magnification, x	2
Filter thread	✓
Filter thread	M48x0.75mm
Compression ring	1.25"/2"
Protective caps included	✓
Operating temperature range, °C	-5...+35

References
and downloads

High-resolution images (zip)

(ZIP, 13.34 Mb)

click to
download

Questions and Answers

Peter Tran (2015.09.26)

can I attach a camera to this lens? Does it have a T adapter?

Customer service:

Unfortunately, Levenhuk ED-2x Barlow Lens doesn't have a T-thread for attaching a T-ring, so there is no possibility to connect a camera to the lens.

Tay Sulan (2015.08.13)

Good day, what's the difference between this lens and {{ {{ http://www.levenhuk.com/catalogue/accessories/levenhuk-ed-3x-barlow-lens/.link.link }} }} except magnification?

Customer service:

Levenhuk ED-2x Barlow Lens and Levenhuk ED-3x Barlow Lens have different magnifications and filter threads (M48x0.75 and M28.5x0.6)

Nelson Beasley (2014.01.05)

Is this Barlow lens suitable for Levenhuk Ra R80 ED Triplet OTA? Is it possible to take pictures with DSLR + T- adapter?

Customer service:

Yes, Levenhuk ED-2x Barlow Lens is great for Levenhuk Ra R80 ED Triplet OTA Telescope. Yes, you can attach any DSLR camera by using T-adapter.

Jessie Campos (2013.11.13)

how can it be not suitable for 1.25" if the description reads that there's a 1.25" adapter in the kit!

Customer service:

You're totally right, there was a mistake in the previous comment. Thank you for your feedback!

Shad Haiman (2013.08.06)

Hi.Does this eyepiece fit Celestron AstroMaster 130 EQ telescope? ( to get the max magnification)

Customer service:

It's not an eyepiece. It's 2x Barlow lens and it doesn't fit, because the barrel diameter is 2". And Celestron AstroMaster 130 EQ has 1.25".
