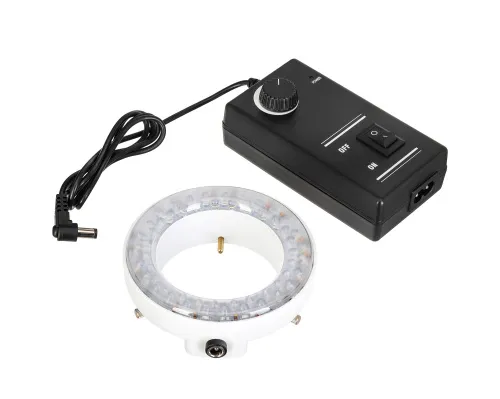

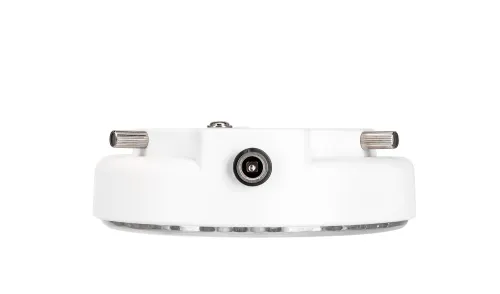

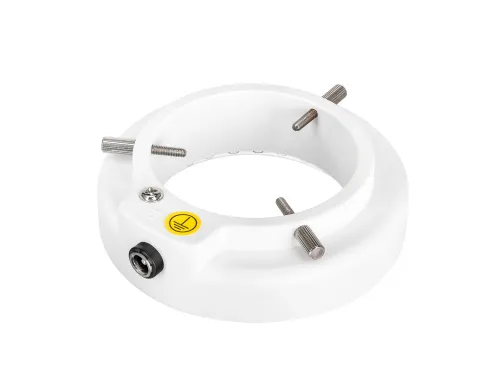

MAGUS LED RL A10 Ring Light

Reflected light illuminator for CMO stereomicroscopes

Availability

Product ID	85138
Brand	MAGUS
Warranty	2 years
EAN	5905555025926
Package size (LxWxH)	10x10x10 cm
Lamp type	LED

Description

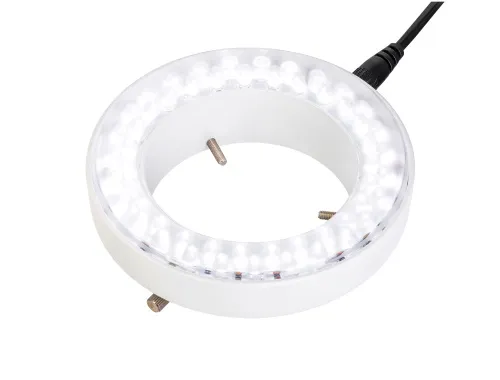

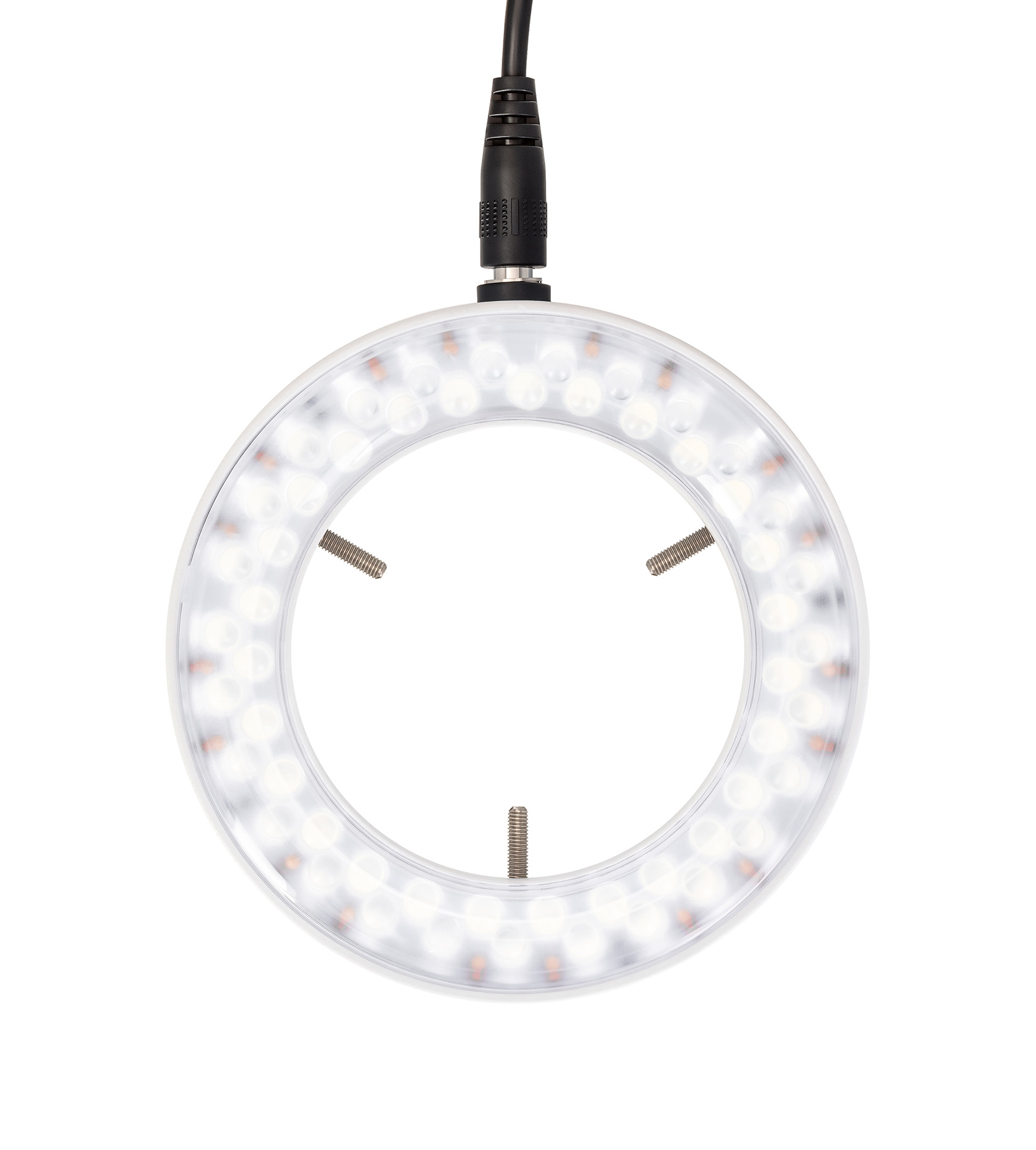

An LED ring light with a matt diffuser is designed to provide bright, uniform, and shadow-free illumination of an object with reflected light. It is installed directly on the CMO stereomicroscope objective so that the light flow is directed coaxially. This is especially important during observations of flat, glossy, or low-contrast samples.

The matt diffuser effectively eliminates harsh shadows and minimizes glare, providing soft, diffused lighting. LEDs do not require you to wait for them to warm up. They instantly reach the set brightness and maintain a stable color temperature even during prolonged operation.

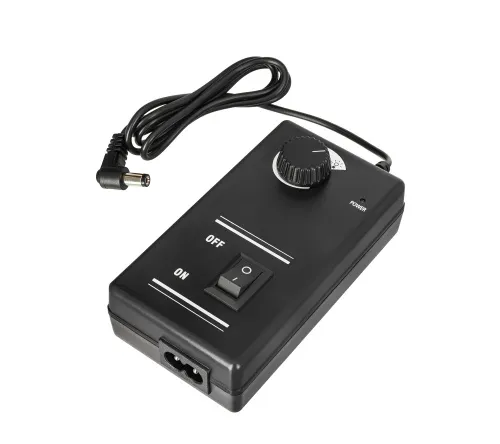

The brightness is adjustable. AC power is supplied via a power supply adapter.

Compatibility:

MAGUS Stereo A6 Stereomicroscope
MAGUS Stereo A8 Stereomicroscope
MAGUS Stereo A10 Stereomicroscope

Specifications

Product ID	85138
Brand	MAGUS
Warranty	2 years
EAN	5905555025926
Package size (LxWxH)	10x10x10 cm
Lamp type	LED
Number of LEDs	54
Illuminator power, W	4.5
Operating voltage, V	12
	60000
Barrel diameter, mm	50 — 80
Brightness adjustment	✓
Power supply	input (AC): 90–240V, 50/60Hz, output (DC): 10–12V, maximum current: 1000mA
Operating temperature range, °C	0...+40
Operating humidity range, %	20 — 85

References
and downloads

MAGUS: information leaflet (pdf)

(PDF, 551.73 Kb)

MAGUS: information booklet (pdf)

(PDF, 18.12 Mb)
