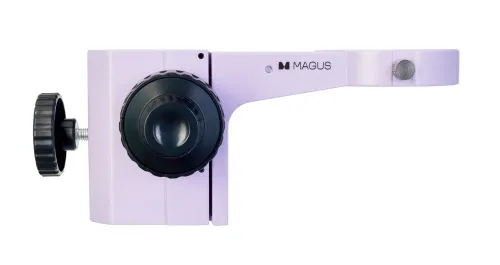

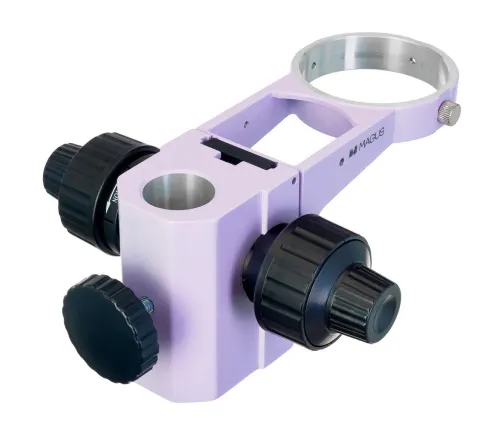

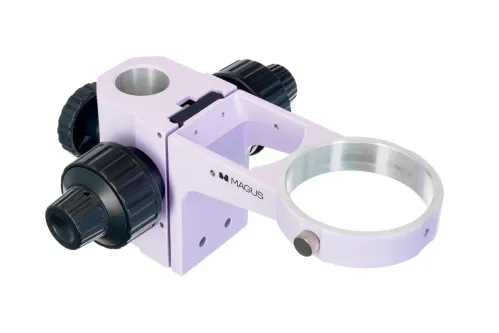

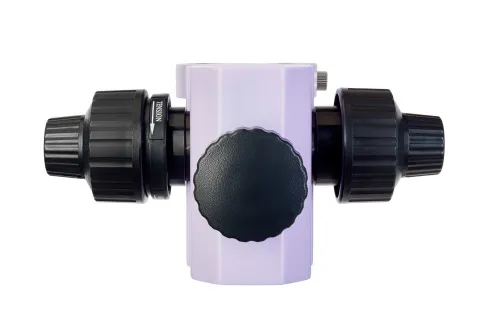

MAGUS FM3 Focus Mount
For stereomicroscopes
Product ID | 83509 |
Brand | MAGUS |
Warranty | 0.5 years |
EAN | 5905555019741 |
Package size (LxWxH) | 29x17x25 cm |
Shipping Weight | 1.6 kg |
Description
A focus mount is a structural element of a stereomicroscope that fixes the microscope head on the stand. By turning the coaxial knobs, the microscope head is focused on the object of study.
The MAGUS FM3 Focus Mount implements coarse and fine focusing. Fine focusing makes work easier at magnifications over 40x.
It is used to install
MAGUS Stereo 7BH,
Stereo 7TH,
Stereo 8BH, and
Stereo 8TH microscope heads on
MAGUS UT1,
UT2, and
UT3 stands.
For the
MAGUS UT1 and
UT3 stands, an additional
MAGUS P32 mounting pin is required.
Specifications | |
---|---|
Installation opening diameter, mm | 32 |
Microscope head diameter, mm | 76 |
Distance between opening centers, mm | 155 |
Focusing travel, mm | 45 |
Fine focusing scale value, μm | 2 |
Specifications
Product ID | 83509 |
Brand | MAGUS |
Warranty | 0.5 years |
EAN | 5905555019741 |
Package size (LxWxH) | 29x17x25 cm |
Shipping Weight | 1.6 kg |
