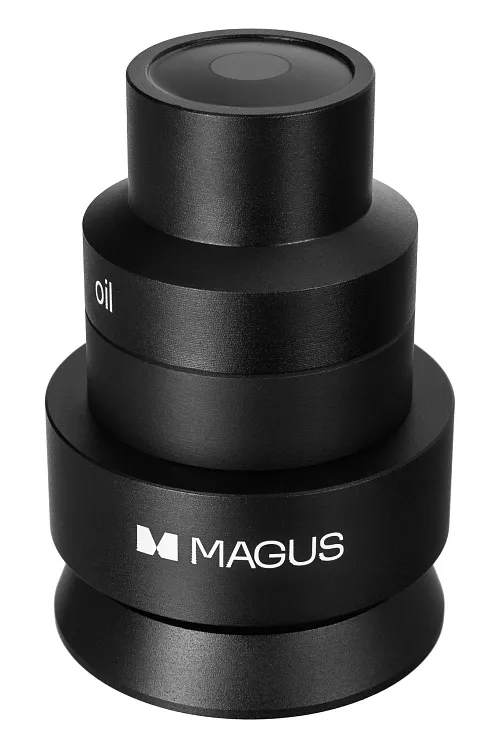

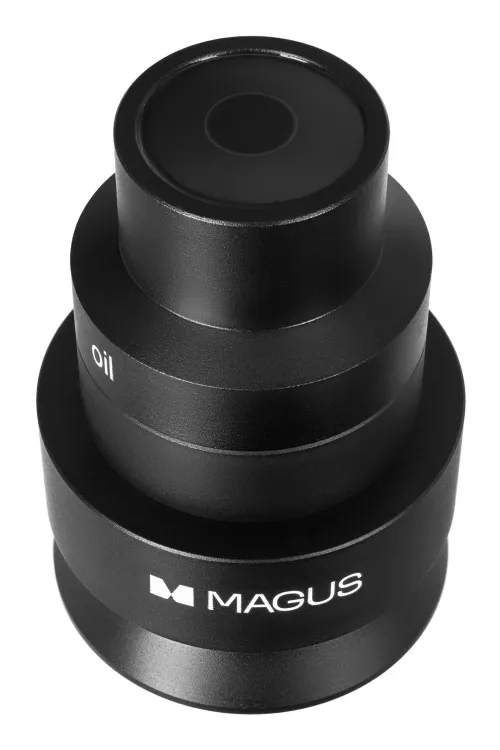

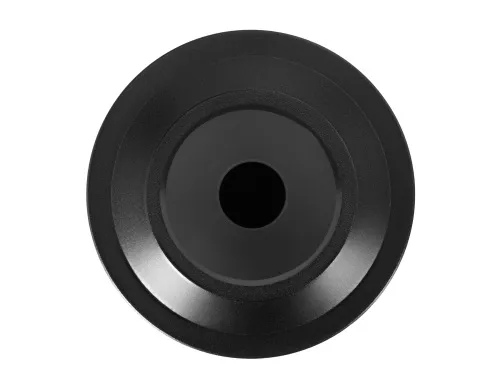

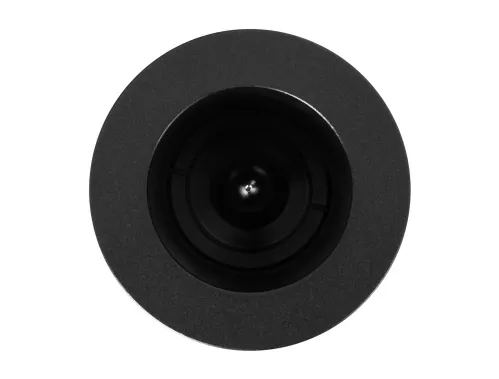

MAGUS DF2 A 1.36–1.25 Oil Darkfield Condenser

The price is valid only for the online store and may differ from the prices in retail stores.

For darkfield microscopy

Availability

Product ID	82923
Brand	MAGUS
Warranty	2 years
EAN	5905555019086
Package size (LxWxH)	5x8x5 cm
Shipping Weight	0.12 kg

Description

This darkfield condenser has a 1.36–1.25 N.A. It is intended for obtaining a contrast image of unstained transparent samples, which cannot be seen with the brightfield microscopy technique. It is used with objectives with magnifications over 20x, including oil-immersion objectives.

The immersion oil should be used for both dry and oil objectives; otherwise, the light will not reach the sample. The MAGUS DF2 A condenser is mounted on the microscope instead of the Abbe condenser and centered with two screws. The image will be as contrasty as possible if the cover glass is 0.17mm thick and the glass slide is 1–1.2mm thick.

Compatibility:

MAGUS Bio 230B Biological Microscope
MAGUS Bio 230BL Biological Microscope
MAGUS Bio 230T Biological Microscope
MAGUS Bio 230TL Biological Microscope
MAGUS Bio 250B Biological Microscope
MAGUS Bio 250BL Biological Microscope
MAGUS Bio 250T Biological Microscope
MAGUS Bio 250TL Biological Microscope
MAGUS Lum 400 Fluorescence Microscope
MAGUS Lum 400L Fluorescence Microscope

Specifications

Product ID	82923
Brand	MAGUS
Warranty	2 years
EAN	5905555019086
Package size (LxWxH)	5x8x5 cm
Shipping Weight	0.12 kg
N.A.	1.36 — 1.25
Immersion medium	oil
Applicable objectives	20х, 40х, 60х, 100х (oil)

References
and downloads

MAGUS: information leaflet (pdf)

(PDF, 551.73 Kb)

MAGUS: information booklet (pdf)

(PDF, 18.12 Mb)

High-resolution images (zip)

(ZIP, 7.63 Mb)
