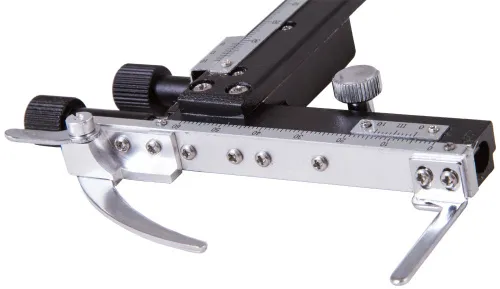

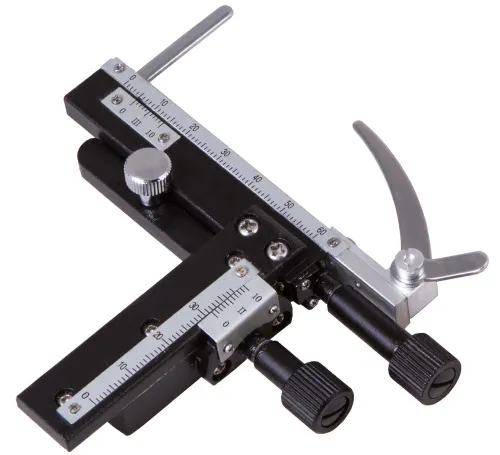

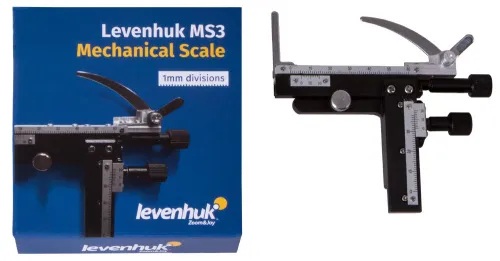

Levenhuk MS3 Mechanical Scale

Attachable scale to control slide movements along – X and Y axes. Features coordinate and nonius scales

Availability

Product ID	71786
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555003511
Package size (LxWxH)	12x11x2
Shipping Weight	0.13

Description

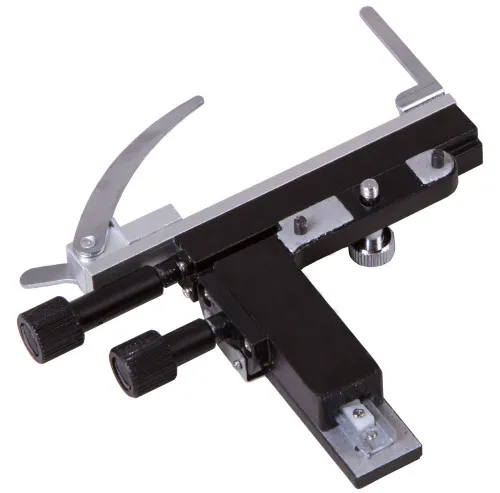

The Levenhuk MS3 Mechanical Scale is a removable accessory useful with a biological microscope for detailed examination of microscope slides. It is installed on the stage instead of the slide holders and is fixed with a stage screw.

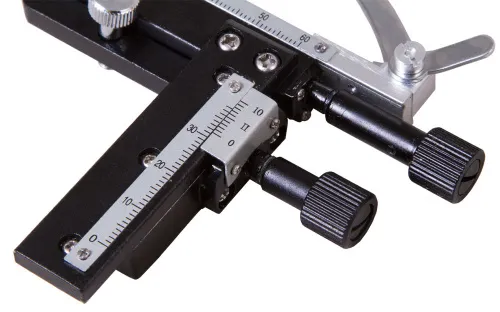

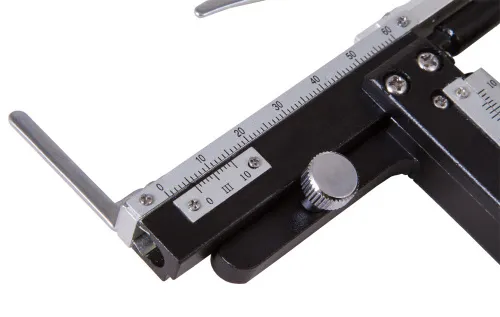

With the Levenhuk MS3 Mechanical Scale, you can move the microscope slides along X axis (left-right) and Y axis (forwards-backwards), and also determine their coordinates. The accessory is supplied with coordinate and nonius scales – the auxiliary scales to make measurements more precise.

The scale is compatible with the following microscopes:

The installation is not recommended for microscopes that have plastic bodies as damage to the microscope may occur.

Specifications
Movement range along X axis, mm	0–57
Movement range along Y axis, mm	0–30
Measuring scale division value, mm	1
Distance between the dowel pins, mm	35±0.1
Distance between the dowel pins and the stage screw, mm	17.5±0.1
Dowel pin diameter, mm	3
Stage screw thread size	M4
Scale material	metal
Handle material	plastic

Specifications

Product ID	71786
Brand	Levenhuk, Inc., USA
Warranty	2
EAN	5905555003511
Package size (LxWxH)	12x11x2
Shipping Weight	0.13

References
and downloads

User manual: Levenhuk MS3 mechanical scale (pdf)

(PDF, 200.34 Kb)

High-resolution images (zip)

(ZIP, 439.06 Kb)

click to
download

Questions and Answers

Hristo Bakovski (2023.08.15)

Will this by any chance be able to work with the Levenhuk Discovery microscopes, specifically the Discovery Femto?

Customer service:

Hi Hristo,

thank you for your query.

Unfortunately this mechanical scale is not compatible with Discovery Femto microscopes.

The scale is compatible with the following microscopes:

Levenhuk 2S NG Monocular Microscope
Levenhuk 3S NG Monocular Microscope
Levenhuk 5S NG Monocular Microscope
Levenhuk 7S NG Monocular Microscope
Levenhuk Rainbow 2L PLUS Orange Microscope
Levenhuk Rainbow 50L PLUS Orange Microscope

Is there any additional information you might need?

George (2019.12.14)

Is it normal for the scale to impede movement of the lens (40x) in the 50L microscope? (rotation is not possible because the scale impedes movement when zoomed in)

Customer service:

Hello George, thank you for your inquiry. Please contact customer support: https://www.levenhuk.com/company/contact-us/ and provide photos of the issue. Looking forward to your reply.
