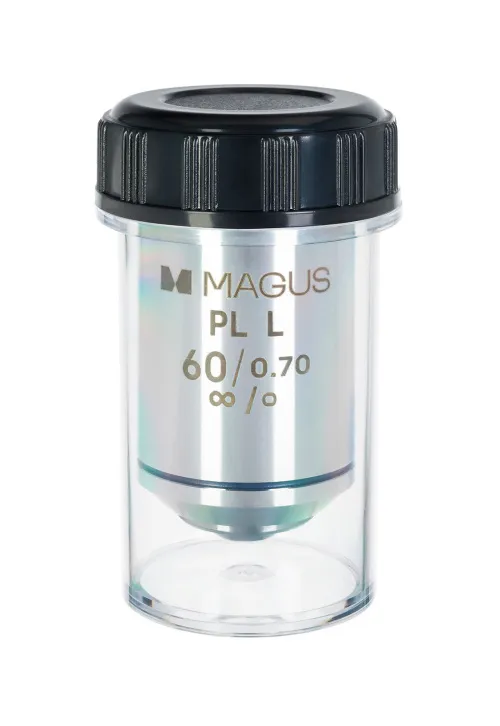

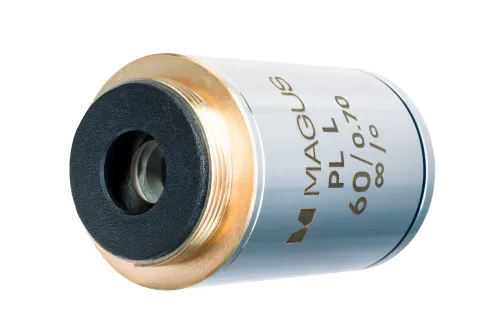

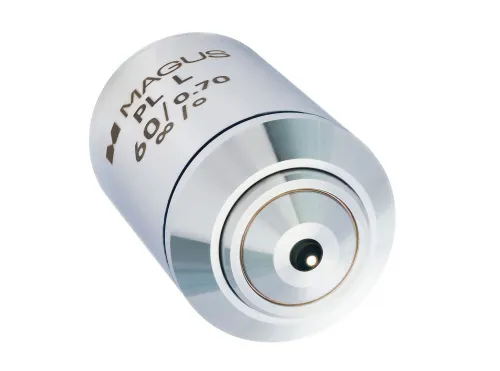

MAGUS 60PLL 60х/0.70 Plan L WD 2.08mm Objective

Metallurgical objective designed for research at long working distances. Suitable for working with relief samples. The working distance of the objective is 2.08mm. A cover glass is not required for operation. The objective is designed to be used with infinity-corrected optical system microscopes. The parfocality of the objective is 45mm.

The 60x plan achromatic objective corrects chromatic aberration for red and blue colors and spherical aberration for green. The field of view is in focus both in the center and at the edges – 90%. Therefore, the objective works well with eyepieces with a wide 22mm field of view. The highest image detail is obtained in combination with eyepieces with magnification from 5 to 15x. Pairing with a 10x/22mm eyepiece will give you a field of view of 0.36mm.

The maximum objective resolution is 0.39µm. The model generates a useful microscope magnification from 350x to 700x.

Compatibility:

• MAGUS Metal 600 Metallurgical Microscope
• MAGUS Metal 630 Metallurgical Microscope
• MAGUS Metal 650 Metallurgical Microscope
• MAGUS Metal V700 Metallurgical Inverted Microscope
