Levenhuk MED 60x Achromatic Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Spring-loaded frame. Magnification: 40x. Aperture: 0.85

Availability

Product ID	76067
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004686
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.074 kg

Description

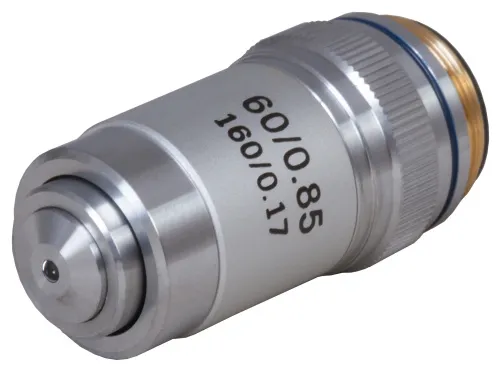

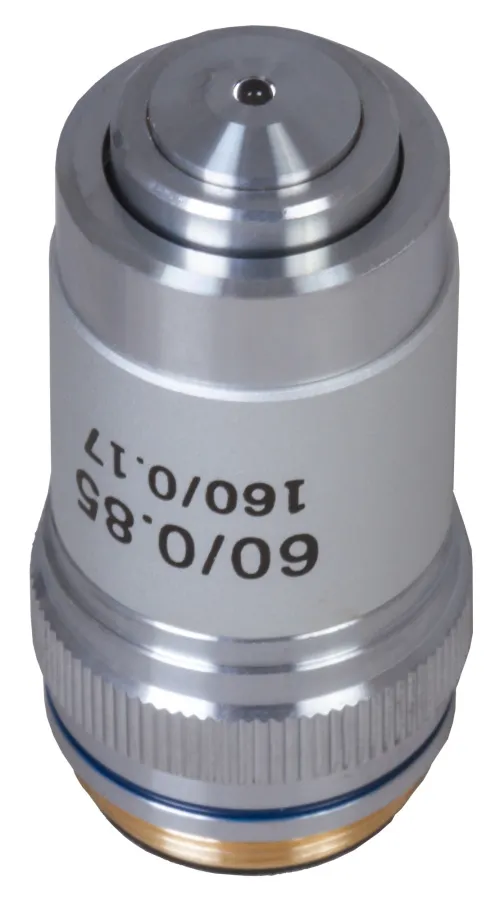

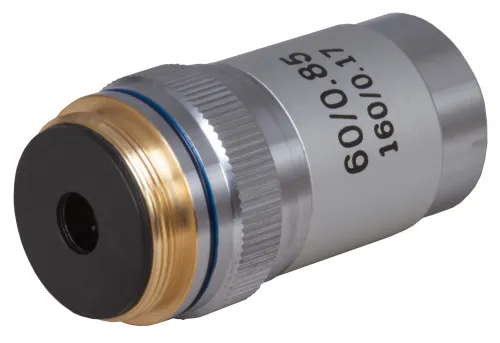

Levenhuk MED 60x is an achromatic objective that provides 60x magnification. It is perfect for laboratory research. It is compatible with the optical microscopes of any brands. Its glass optics deliver clear and high-contrast images across the entire field of view. The front lens is protected by a spring-loaded frame. The body is made of metal, so the objective is durable and sturdy.

The Levenhuk MED 60x achromatic objective will be an excellent addition to any professional microbiologist's set of accessories.

The kit includes:

Objective
Plastic case

Specifications

Product ID	76067
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004686
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.074 kg
Lens material	optical glass
Body material	copper
Objective class by aberration correction degree	achromatic
Magnification, x	60
Aperture	0.85
Working distance, mm	0.46
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	yes
Immersion	no
