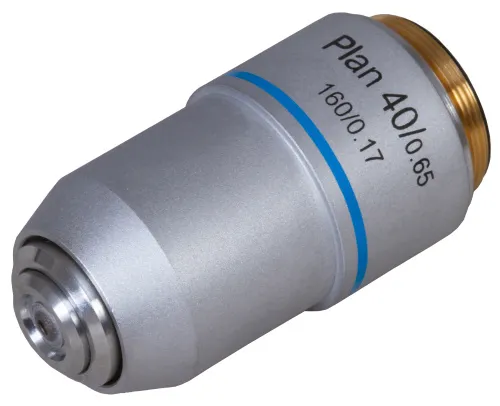

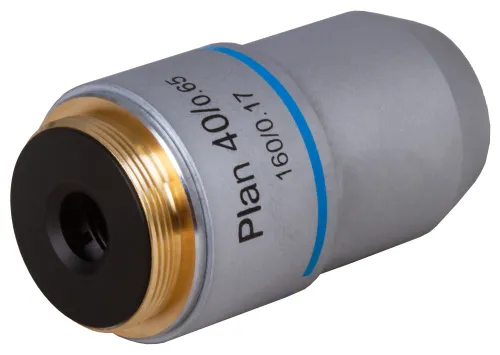

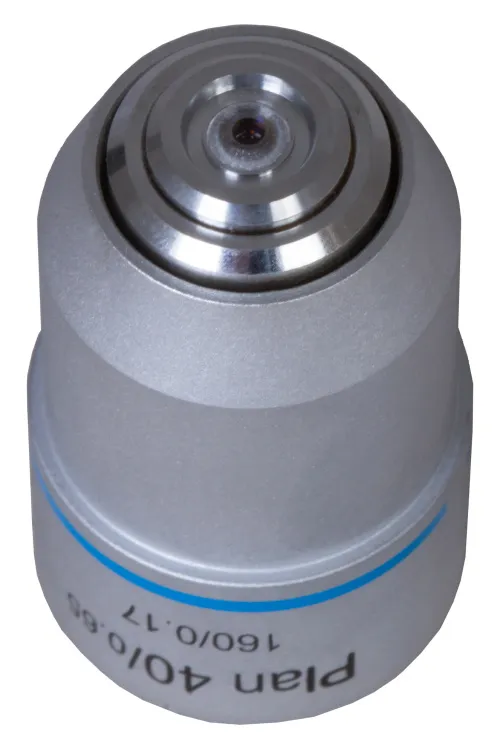

Levenhuk MED 40x Plan Achromatic Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Spring-loaded frame. Magnification: 40x. Aperture: 0.65

Availability

Product ID	76071
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004723
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.108 kg

Description

Levenhuk MED 40x is a plan achromatic objective with 40x magnification. It can be used for microbiological research of any level of complexity. It is compatible with the microscopes of any brand. Plan Achromatic optics are well known for significantly increasing the quality of the transmitted image. They remove spherical aberrations, flatten the field of view, and improve color rendition. Levenhuk MED 40x is perfect for work in a laboratory.

The objective's lenses are made of optical glass; the front lens is equipped with a spring-loaded frame. The body is made of metal.

The kit includes:

Objective
Plastic case

Specifications

Product ID	76071
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004723
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.108 kg
Lens material	optical glass
Body material	copper
Objective class by aberration correction degree	plan achromatic
Magnification, x	40
Aperture	0.65
Working distance, mm	0.75
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	yes
Immersion	no
