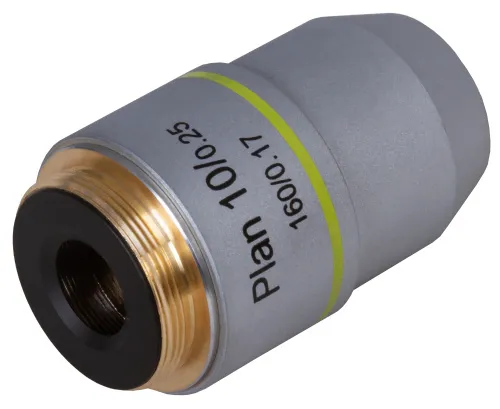

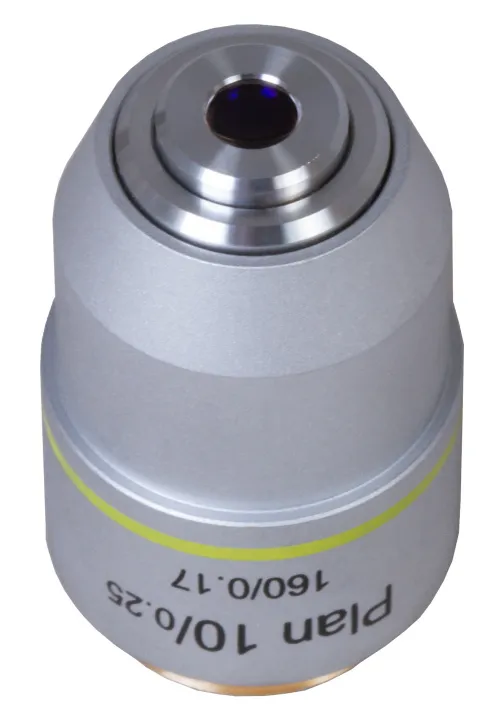

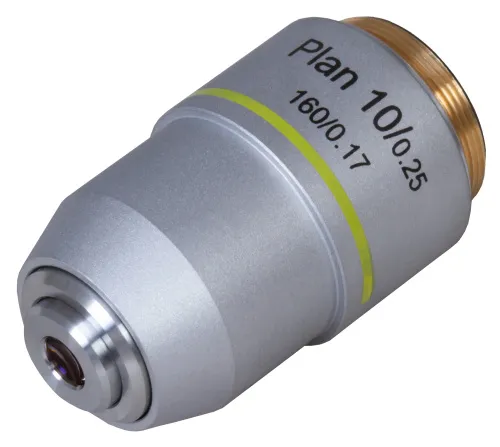

Levenhuk MED 10x Plan Achromatic Objective

The price is valid only for the online store and may differ from the prices in retail stores.

Magnification: 10x. Aperture: 0.25

Availability

Product ID	76069
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004709
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.104 kg

Description

The Levenhuk MED 10x plan achromatic objective is a high-quality microscope accessory. It is designed for studying complex microstructures. This plan achromatic objective allows for transmitting a quality, contrast, and clear picture without spherical aberrations. The field of view is flat. The objective provides 10x magnification.

The objective's optics are made of glass, and the body is metal. Levenhuk MED 10x is perfect for work in a laboratory.

The kit includes:

Objective
Plastic case

Specifications

Product ID	76069
Brand	Levenhuk, Inc., USA
Warranty	2 years
EAN	5905555004709
Package size (LxWxH)	3x6x3 cm
Shipping Weight	0.104 kg
Lens material	optical glass
Body material	copper
Objective class by aberration correction degree	plan achromatic
Magnification, x	10
Aperture	0.25
Working distance, mm	5.84
Parfocal distance, mm	45
Cover glass thickness, mm	0.17
Compatible tube length, mm	160
Thread type	WJ 4/5"*1/36"
Spring-loaded frame	no
Immersion	no
