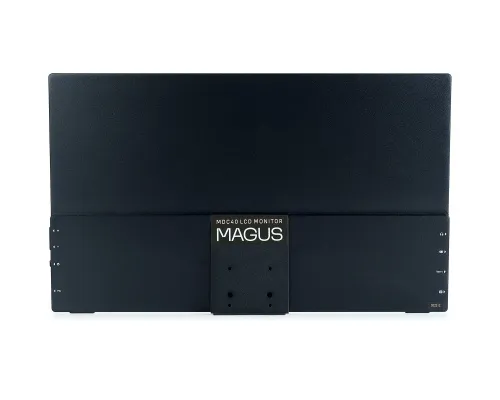

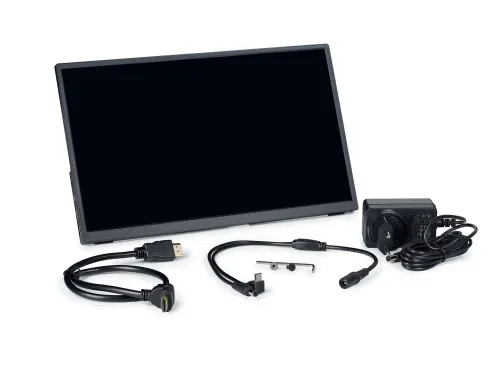

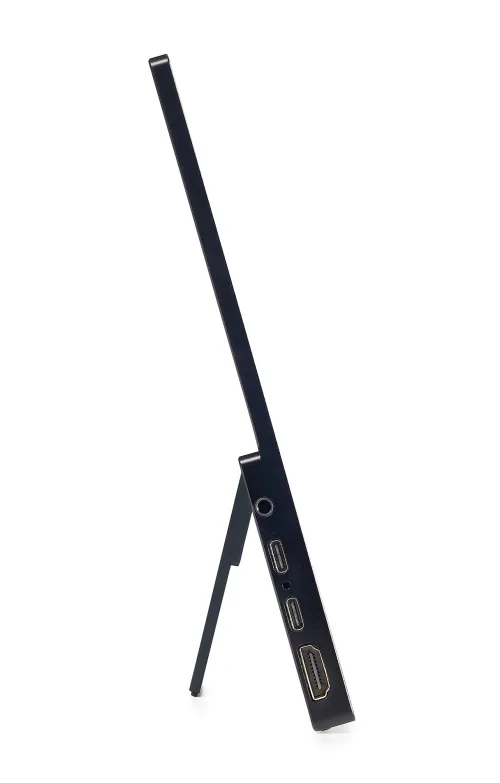

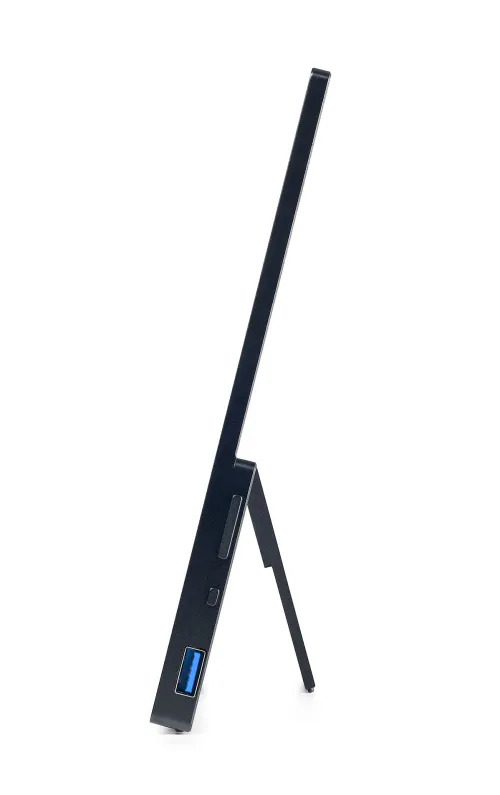

MAGUS MCD40 LCD Monitor

see all

The price is valid only for the online store and may differ from the prices in retail stores.

13.3", IPS, 3840x2160 pixels (4K), HDMI

IPS

Matrix type is a key element of the screen responsible for displaying the image

13.3

Display diagonal

3840x2160 (4K)

The display resolution is the number of pixels horizontally and vertically

Availability

Product ID	83211
Brand	MAGUS
Warranty	5 years
EAN	5905555019338
Package size (LxWxH)	35x24x6 cm
Shipping Weight	1.25 kg

Description

MAGUS MCD monitors are designed to work with MAGUS CHD cameras. Together, they form a complete imaging system for MAGUS microscopes.

The MCD40 model works with 4K resolution images. In the MAGUS camera line, such images are produced by the following cameras:

CHD40
CHD50

The monitor has an HDMI interface for connecting to the camera. With the monitor, you can observe what is happening under the objective in real time. The screen is based on an IPS type liquid crystal matrix. This type of display has a wide viewing angle, high brightness, and good contrast. The image will maintain its quality even at a large viewing angle. The screen size is 13.3''.

The monitor can be set up on a horizontal surface using a folding stand or mounted directly on a camera or microscope stand.

Specifications

Product ID	83211
Brand	MAGUS
Warranty	5 years
EAN	5905555019338
Package size (LxWxH)	35x24x6 cm
Shipping Weight	1.25 kg
Type of matrix	IPS
Display diagonal, inch	13.3
Display resolution, px	3840x2160 (4K)
Aspect ratio	16:9
Brightness, cd/m²	400
Number of displayed colors	16.7 m
Contrast	1000:1
Horizontal/vertical viewing angle, °	178/178
Size of the visible screen area (WxH), mm	295x165
Pixel pitch (WxH), mm	0.154x0.154
Frequency of optical source, Hz	60
Type of matrix backlight	LED
LED backlight lifetime, h	50000
Interface	HDMI
Operating temperature range, °C	-15...+55
Operating humidity range, %	10 — 90
Power supply	AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W	12 (max.)
