MAGUS MCD20 LCD Monitor

see all

The price is valid only for the online store and may differ from the prices in retail stores.

13.3", IPS, 1920x1080px (Full HD), HDMI

IPS

Matrix type is a key element of the screen responsible for displaying the image

13.3

Display diagonal

1920x1080 (Full HD)

The display resolution is the number of pixels horizontally and vertically

Availability

Product ID	83210
Brand	MAGUS
Warranty	5 years
EAN	5905555019321
Package size (LxWxH)	35x24x6 cm
Shipping Weight	1.25 kg

Description

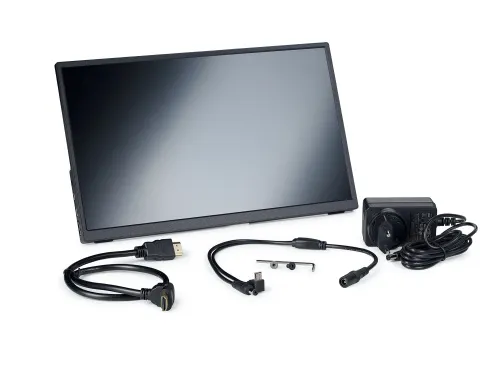

MAGUS MCD monitors work in combination with MAGUS CHD cameras to form a complete imaging system for MAGUS microscopes.

The MCD20 model reproduces the image in Full HD resolution and is recommended for MAGUS cameras:

CHD10
CHD20
CHD30

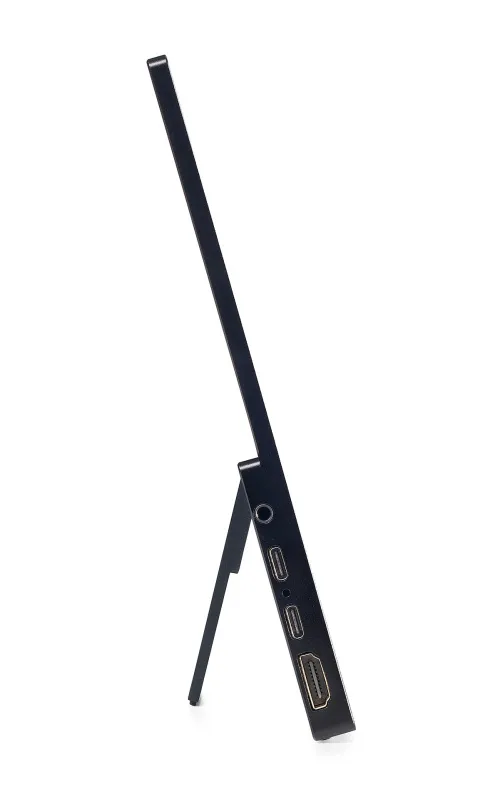

The connection to the camera occurs via its HDMI interface. The monitor displays real-time images. Its IPS LCD display has a wide viewing angle, high brightness, and good contrast. When looking at the screen even from a large angle, the image is not distorted. The screen size is 13.3''.

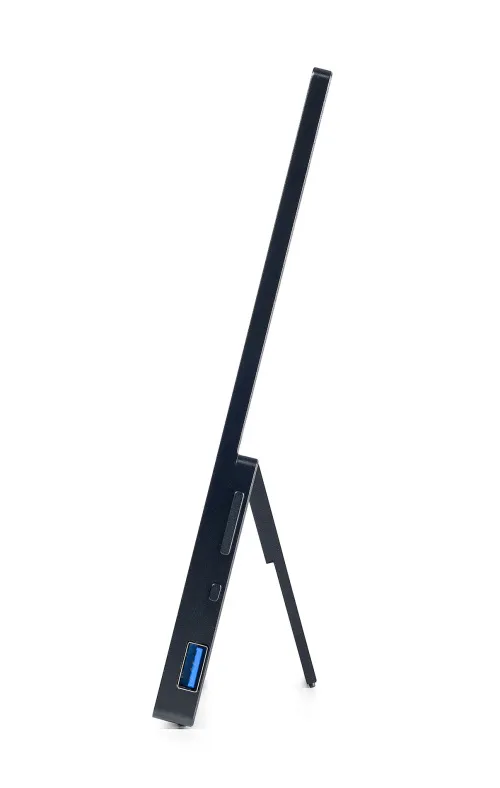

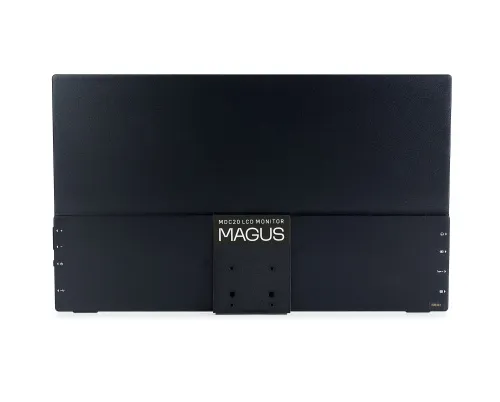

The monitor can be installed on a horizontal surface using a folding stand or mounted directly on a camera or tripod.

Specifications

Product ID	83210
Brand	MAGUS
Warranty	5 years
EAN	5905555019321
Package size (LxWxH)	35x24x6 cm
Shipping Weight	1.25 kg
Type of matrix	IPS
Display diagonal, inch	13.3
Display resolution, px	1920x1080 (Full HD)
Aspect ratio	16:9
Brightness, cd/m²	400
Number of displayed colors	16.7 m
Contrast	1000:1
Horizontal/vertical viewing angle, °	178/178
Size of the visible screen area (WxH), mm	295x165
Pixel pitch (WxH), mm	0.154x0.154
Frequency of optical source, Hz	60
Type of matrix backlight	LED
LED backlight lifetime, h	50000
Interface	HDMI
Operating temperature range, °C	-15...+55
Operating humidity range, %	10 — 90
Power supply	AC 110–220V, DC 5–12V/1A (Type-C)
Power consumption, W	12 (max.)
