MAGUS CDF70 Digital Camera

The price is valid only for the online store and may differ from the prices in retail stores.

USB3.0, 20MP, 1'', color

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

2.4x2.4

The pixel size is directly proportional to the sensor’s sensitivity

0.1ms–15s

Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor

Availability

Product ID	83200
Brand	MAGUS
Warranty	5 years
EAN	5905555019222
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg

Description

Digital CMOS backlit color camera. The sensor is characterized by low noise and increased light sensitivity (462mV at 1/30s). The camera produces bright, detailed images even in low light. It is used for darkfield or brightfield studies using 4x, 10x, and 20x objectives. The MAGUS CDF70 camera helps achieve high detail even when observing moving objects.

This camera’s maximum resolution is 5440x3648px. At this resolution, the frame rate is 20 fps. You can set lower resolutions with higher frame rates: 2736x1824px (48fps) or 1824x1216px (58fps). With these resolutions and rates, the camera is used to observe moving objects. The frames transition is smooth, without delays, and so the object is convenient to observe and showcase to an audience.

The MAGUS CDF70 camera is installed in the trinocular tube or in the eyepiece tube of the microscope in place of the eyepiece. In both cases, a C-mount adapter of the appropriate diameter is required, and adapter rings are also required for installation in the eyepiece tube. The camera that is installed on the microscope connects to the computer via a USB3.0 port with a data transfer speed of 5Gbps.

Before you begin, you need to install the included MAGUS View software and drivers on your computer. All of the camera features require the software: Displaying images on a monitor, photo and video shooting, editing, etc. The program must be calibrated for each objective using a calibration slide (optional accessory).

Key features:

Backlit CMOS sensor, low signal-to-noise ratio, and high light sensitivity
Operation in darkfield or brightfield using objectives with magnifications of 4x, 10x, and 20x
Installation into the trinocular tube via a C-mount adapter or into an eyepiece tube using an adapter and adapter rings

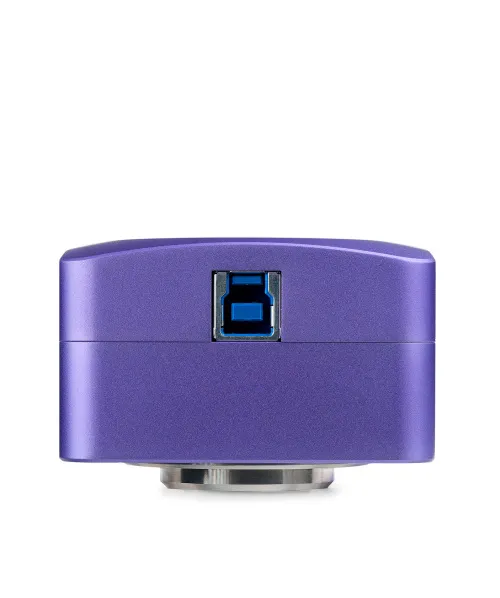

USB3.0 interface, data transfer speeds up to 5Gbps
Three resolutions with different frame rates, observing moving objects in real time, without delay
Installation CD with the software and drivers included

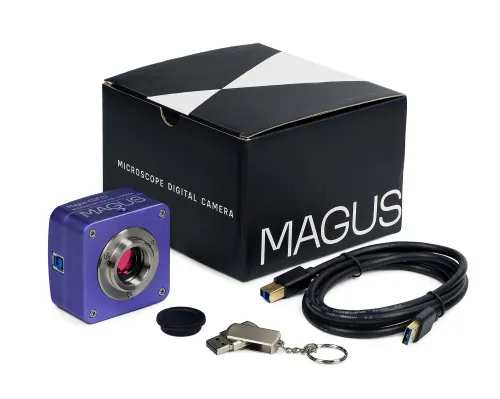

The kit includes:

Digital camera
USB cable
Installation CD with drivers and software
User manual and warranty card

Specifications

Product ID	83200
Brand	MAGUS
Warranty	5 years
EAN	5905555019222
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg
Sensor	SONY Exmor CMOS
Color/monochrome	color
Megapixels	20
Maximum resolution, pix	5440x3648
Sensor size	1'' (13.06x8.76mm)
Pixel size, μm	2.4x2.4
Light sensitivity	462mV with 1/30s
Signal/noise ratio	0.21mV with 1/30s
Exposure time	0.1ms–15s
Video recording	✓
Frame rate, fps at resolution	20@5440x3648, 48@2736x1824, 58@1824x1216
Place of installation	trinocular tube, eyepiece tube instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	380–650 (built-in IR filter)
Shutter type	ERS (electronic rolling shutter)
White balance	manual, automatic
Exposure control	manual, automatic
Software features	image size, brightness, exposure time
Output	USB 3.0, 5Gb/s
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software	MAGUS View
Mount type	C-mount
Body	CNC aluminum alloy
Power supply	DC current, 5V, from the USB port of the PC
Operating temperature range, °C	-10...+50
Operating humidity range, %	30 — 80
