MAGUS CDF30 Digital Camera

The price is valid only for the online store and may differ from the prices in retail stores.

USB 3.0, 8.3MP, 1/1.2'', color

8.3

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

2.9x2.9

The pixel size is directly proportional to the sensor’s sensitivity

0.02ms–15s

Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor

Availability

Product ID	83197
Brand	MAGUS
Warranty	5 years
EAN	5905555019192
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg

Description

Video eyepiece with a SONY Exmor 8.3MP digital sensor. The sensor uses back-illumination technology to improve light sensitivity as well as to produce bright, clear images even in low light. The camera is used for work using the darkfield or brightfield microscopy technique on objectives with a magnification of 4x, 10x, and 20x. It also works with stereomicroscopes. A USB3.0 port with high data transfer speed (5Gbps) is used to connect to a computer and display images on the screen.

The MAGUS CDF30 camera is installed in the trinocular tube or in the eyepiece tube of a microscope. The maximum field of view without optical defects can be reached using an adapter with a magnification from 0.65x to 0.9x. To install it in the eyepiece tube, in addition to the adapter, you will also need an adapter matching the diameter of the tube.

The image is displayed on the computer screen with a maximum resolution of 3840x2160px. The frame rate is 45 fps. At a lower resolution (1920x1080px), the frame rate increases to 70fps. Transitions between frames are almost imperceptible, with no delays, and so the camera can be used to study and showcase moving objects. Photos and videos are recorded and saved in various formats.

Before using the MAGUS CDF30 digital camera, you must install a special program on your computer. The camera comes with a CD containing the drivers and MAGUS View software. The software must be calibrated on each objective. This requires a calibration slide that is not included in the kit.

Key features:

SONY Exmor backlit color CMOS sensor, high light sensitivity
Operation in darkfield and brightfield using 4x, 10x, and 20x objectives

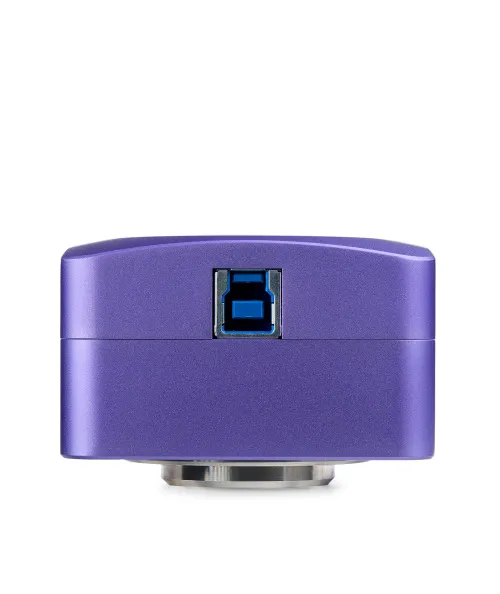

Computer connection via a USB3.0 interface with a data transfer speed of 5Gbps
Image output to a monitor in ultra-high resolution 4K 3840x2160px (45fps) or Full HD 1920x1080px (70fps)
Drivers and image processing software are included
Installation into the trinocular tube or the eyepiece tube of a microscope

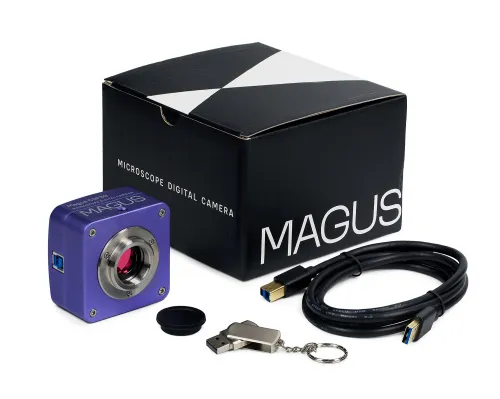

The kit includes:

Digital camera
USB cable
Installation CD with drivers and software
User manual and warranty card

Specifications

Product ID	83197
Brand	MAGUS
Warranty	5 years
EAN	5905555019192
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg
Sensor	SONY Exmor CMOS
Color/monochrome	color
Megapixels	8.3
Maximum resolution, pix	3840x2160
Sensor size	1/1.2'' (11.14x6.26mm)
Pixel size, μm	2.9x2.9
Light sensitivity	5970mV/lux/s
Signal/noise ratio	0.13mV at 1/30s
Exposure time	0.02ms–15s
Video recording	✓
Frame rate, fps at resolution	45@3840x2160, 70@1920x1080
Place of installation	trinocular tube, eyepiece tube instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	380–650 (built-in IR filter)
Shutter type	ERS (electronic rolling shutter)
White balance	manual, automatic
Exposure control	manual, automatic
Software features	image size, brightness, exposure time
Output	USB 3.0, 5Gb/s
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software	MAGUS View

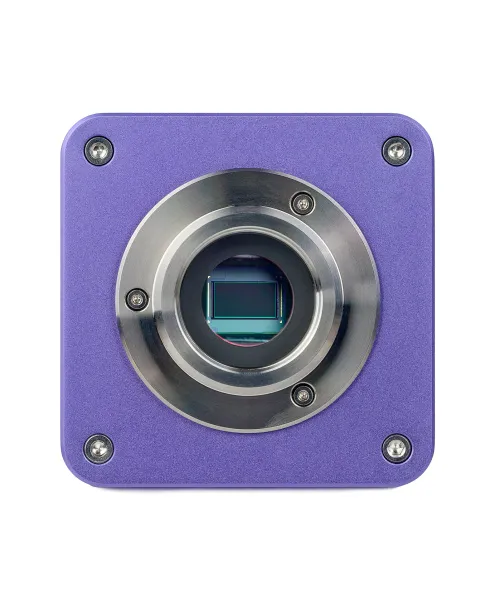

Mount type	C-mount
Body	solid aluminum
Power supply	DC current, 5V, from the USB port of the PC
Operating temperature range, °C	-10...+50
Operating humidity range, %	30 — 80
