MAGUS CBF50 Digital Camera

The price is valid only for the online store and may differ from the prices in retail stores.

USB 3.0, 3.1MP, 1/1.8'', color

3.1

Matrix resolution – the number of megapixels that it consists of; influences the detail of the image

3.45x3.45

The pixel size is directly proportional to the sensor’s sensitivity

0.1ms–15s

Camera shutter speed is the time during which the shutter remains open, thereby allowing light to enter the sensor

Availability

Product ID	83205
Brand	MAGUS
Warranty	5 years
EAN	5905555019277
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg

Description

The MAGUS CBF50 Digital Camera is designed for use with a microscope. It enables you to take photos and record videos, edit the resulting materials, and organize demonstrations.
It is recommended to use the camera in the brightfield method with 40х, 60х, and 100х objectives.

Resolution adjustment

The camera is equipped with a 3.1MP sensor and has two resolution modes: 2048x1536px (with the ability to record video at 53fps) and 1024x768px (85fps). The frame rate in these modes is sufficient to observe moving objects, fast processes, and sample movements without delays. Video recording is smooth, without jerkiness or freezing when the frames transition, and photos are clear and easy-to-read.

Sensor

The SONY Exmor backlit CMOS sensor with a light sensitivity of 1146mV at 1/30s will help you conduct productive research and shooting even in low-light conditions.

Data transfer

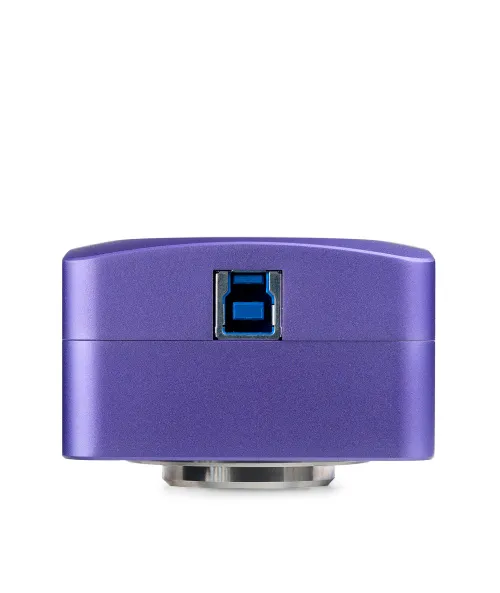

The camera is equipped with a USB3.0 interface that is 10 times faster than the previous generation interface. Data transfer occurs without freezing or jumping, which helps in organizing demonstrations and instantly displaying images on an external screen.

Getting started

The camera comes with the necessary software to take photos and record video, edit the graphic materials, conduct demonstrations, and perform linear and angular measurements (the function requires calibration, which must be performed for each objective).

Key features:

The camera is installed in the microscope trinocular tube or in the eyepiece tube (a C-mount adapter and an adapter ring of suitable diameter are required)
Two resolution and fps modes in order to choose the one that best suits your needs at the given moment
Ability to observe and film even in low light thanks to the sensitive backlit SONY Exmor color sensor
Accelerated data transfer via USB3.0 interface
To work with all the functions of the camera, you only need to install the software that comes with the device

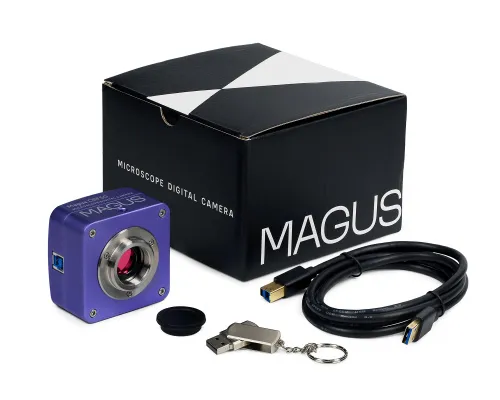

The kit includes:

Digital camera
USB cable
Installation CD with drivers and software
User manual and warranty card

Specifications

Product ID	83205
Brand	MAGUS
Warranty	5 years
EAN	5905555019277
Package size (LxWxH)	15x15x10 cm
Shipping Weight	0.6 kg
Sensor	SONY Exmor CMOS
Color/monochrome	color
Megapixels	3.1
Maximum resolution, pix	2048x1536
Sensor size	1/1.8" (7.07x5.30mm)
Pixel size, μm	3.45x3.45
Light sensitivity	1146mV at 1/30s
Signal/noise ratio	0.15mV at 1/30s
Exposure time	0.1ms–15s
Video recording	✓
Frame rate, fps at resolution	53@2048x1536, 85@1024x768
Place of installation	trinocular tube, eyepiece tube instead of an eyepiece
Image format	.jpg, .bmp, .png, .tif
Video format	output: .wmv, .avi, .h264 (Windows 8 and later), h265 (Windows 10 and later)
Spectral range, nm	380–650 (built-in IR filter)
Shutter type	ERS (electronic rolling shutter)
White balance	manual, automatic
Exposure control	manual, automatic
Software features	image size, brightness, exposure time
Output	USB 3.0, 5Gb/s
System requirements	Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 3.0 port, CD-ROM, 17" or larger display
Software	MAGUS View

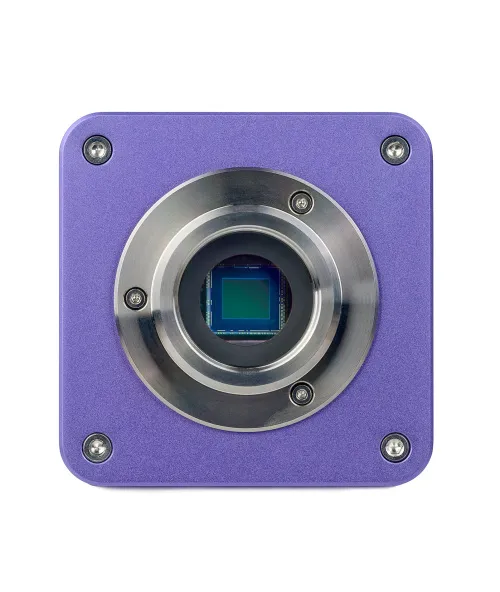

Mount type	C-mount
Body	solid aluminum
Power supply	DC current, 5V, from the USB port of the PC
Operating temperature range, °C	-10...+50
Operating humidity range, %	30 — 80
