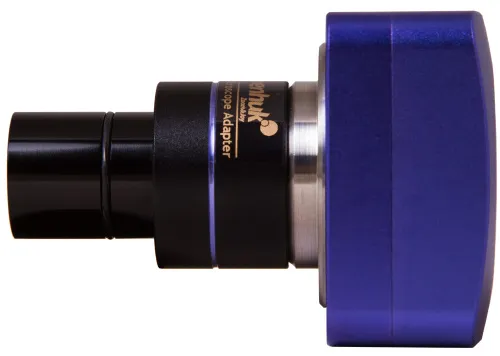

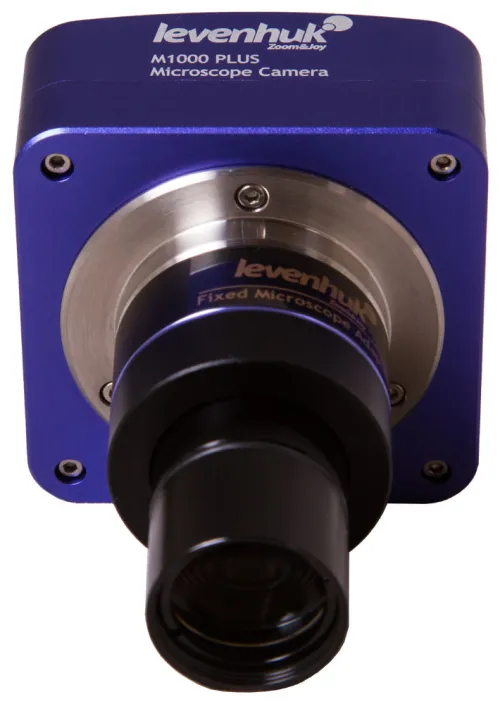

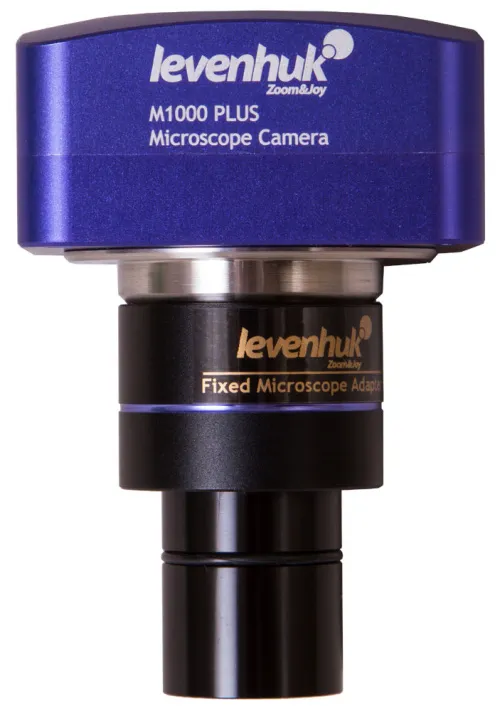

USA Levenhuk M1000 PLUS Digital Camera
A modern microscope digital camera
| Product ID | 70358 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003443 |
| Package size (LxWxH) | 6x17x15 cm |
| Shipping Weight | 0.53 kg |
The 10-megapixel Levenhuk M1000 PLUS Digital Camera is a powerful accessory for taking photos of the microworld. It allows you to take pictures with a resolution up to 3584x2748 pixels. You can also record smooth and colorful videos, share photos of interesting moments of the research with like-minded people, and broadcast videos of your studies. The camera is compatible with biological and stereoscopic microscopes of any brand.
The camera can be installed in an eyepiece tube of any diameter: the necessary adapters are included in the kit. To connect the device to a computer, a standard USB cable is used. To process received images, use the special Levenhuk software (CD is included).
The Levenhuk M1000 PLUS Digital Camera is suitable for introduction to microphotography and for professional work with samples.
The kit includes a CD with special software that allows you to edit previously saved images: zoom them, crop them, change the contrast, and so forth.
To ensure the best possible performance of your new camera, make sure your computer complies with the system requirements specified by the manufacturer. Compatible OS include Mac, Linux, and Windows. A USB 2.0 port is required to establish a connection. If the software does not run on your computer, please contact us and specify your operating system and its version (for Linux: platform and kernel version).
The latest version of Levenhuk Software for Windows supports eight languages: English, French, German, Polish, Russian, Simplified Chinese, Traditional Chinese, Turkish.
Levenhuk Digital Camera is compatible with microscopes of 23.2mm eyepiece tube diameter. The camera can also be mounted on eyepiece tubes of 30 and 30.5mm diameters using adapters, included in the kit.

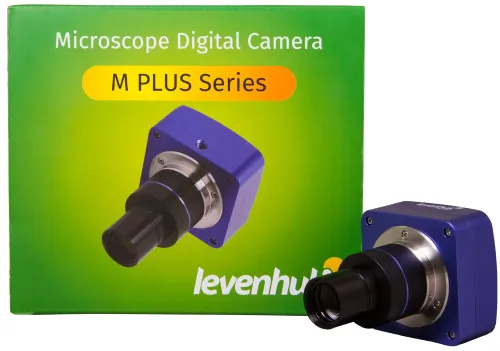

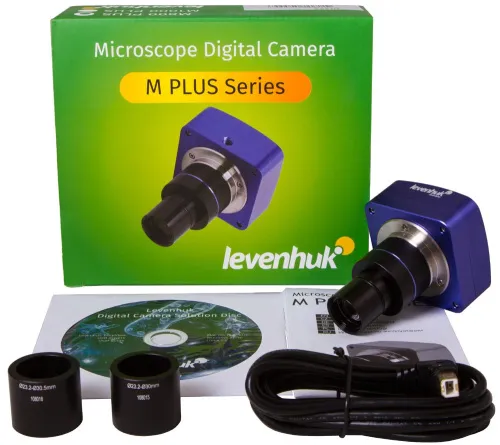

The kit includes:
- Levenhuk microscope digital camera
- Adapter (23.2mm)
- 2 adapters for microscopes with different diameters of an eyepiece tube (23.2–30mm and 23.2–30.5mm)
- USB cable for connection to PC or laptop and power supply
- Installation CD with Levenhuk image editing software and the required drivers
- User manual and lifetime warranty
| Product ID | 70358 |
| Brand | Levenhuk, Inc., USA |
| Warranty | lifetime |
| EAN | 5905555003443 |
| Package size (LxWxH) | 6x17x15 cm |
| Shipping Weight | 0.53 kg |

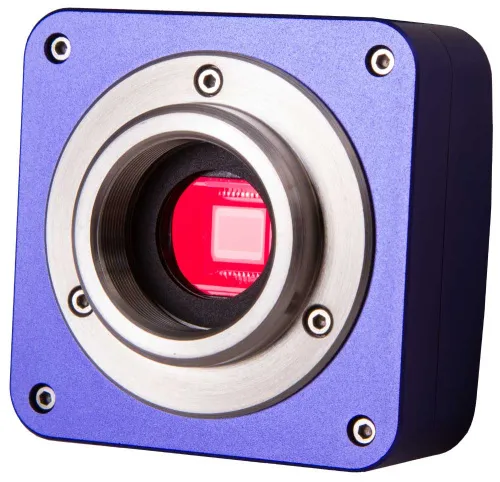

| Sensor | CMOS |
| Megapixels | 10 |
| Maximum resolution, pix | 3584x2748 |
| Sensor size | 1/2.3" |
| Pixel size, μm | 1.55x1.55 |
| Light sensitivity | 0.31 v / lux.sec @ 550 nm |
| Exposure time | 0.4ms–2000ms |
| Video recording | ✓ |
| Frame rate, fps at resolution | 3.3@3584x2748, 12@1792x1374, 53@896x684 |
| Active range, dB | 65.2 |
| Place of installation | eyepiece tube of 23.2mm diameter, instead of the actual eyepiece |
| Image format | *.jpg, *.bmp, *.png, *.tif |
| Video format | output: *.wmv, *.avi, *.h264 (Windows 8 and later), *h265 (Windows 10 and later) |
| Spectral range, nm | 380–650 (built-in IR filter) |
| Shutter type | ERS (electronic rolling shutter) |
| White balance | manual, automatic |
| Exposure control | manual, automatic |
| Software features | image size, brightness, exposure time |

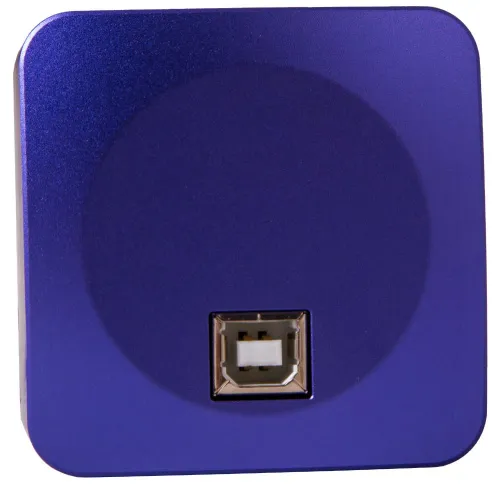

| Output | USB 2.0, 480 Mbps |
| System requirements | Windows 8/10/11 (32bit and 64bit), Mac OS X, Linux, up to 2.8GHz Intel Core 2 or higher, minimum 2GB RAM, USB 2.0 port, CD-ROM |
| Software | Levenhuk |
| Body | metal |
| Power supply | 2.0 USB cable |
| Operating temperature range, °C | -10...+50 |
