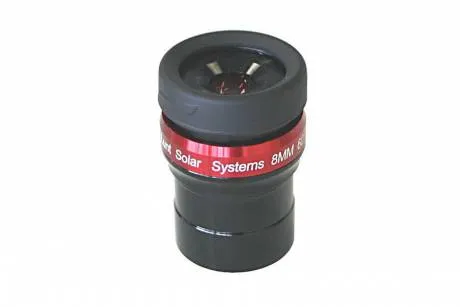

LUNT LS8E H-alpha 60° 8mm 1.25” Flat Field Eyepiece

Lunt Solar Systems H-alpha optimized 8mm eyepiece, with 1.25" connection

4 elements

Optical design is a set of optical elements that is assembled in a certain way

1.25

The barrel diameter of the accessory must match the barrel diameter of the device; otherwise, an adapter will be required

The focal length of the eyepiece and the focal length of your telescope determine the magnification

Availability

Product ID	71105
Brand	LUNT Solar Systems
Warranty	2 years
EAN	0753215774531
Package size (LxWxH)	5x0x0 cm
Shipping Weight	0.075 kg

Description

Lunt Solar Systems does everything possible to match the quality of each optical component in our systems for maximum performance. This eyepiece with 8mm focal length is coated with the same anti-reflective coatings as on the etalons. The anti-reflective coatings reduce ghosting and glow and aid in providing darker background.

The 8mm eyepiece provide a 60 degrees field of view, and 10mm eye relief. It has a very nice height adjustable eyeguard to protect your eye against day light reflections and to help you to find the perfect eye position.

Given the optimization in the red end of the spectrum, LUNT eyepieces will also work very well for night time observing.

Specifications

Product ID	71105
Brand	LUNT Solar Systems
Warranty	2 years
EAN	0753215774531
Package size (LxWxH)	5x0x0 cm
Shipping Weight	0.075 kg
Optical scheme	4 elements
Barrel diameter, in	1.25
Focal length, mm	8
Field of view, °	60
Eye relief, mm	10
Outside diameter, mm	38
